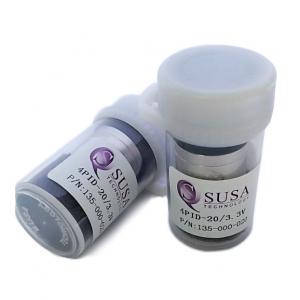

Photoionization Sensor (PID Sensor) TVOC Detection - 4PID-20-3.3V

? Working principle: PID
? Measurement range: 0~20ppm
? Resolution: 5ppb
? Sensitivity: > 75mV/ppm
? Response Time(T90): ≤ 5second
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)

  • Model Number: 4PID-20-3.3V
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Photoionization Sensor (PID Sensor) TVOC Detection
Mouse over image to zoom
Share:

Product Specification

Photoionization Sensor (PID Sensor) TVOC Detection

4PID-20-3.3V Photoionization Sensor (PID Sensor) Basic Characteristics
? Working principle: PID
? Measurement range: 0~20ppm
? Resolution: 5ppb
? Accuracy: <±2% (Calibration Point)
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)
? Operating Pressure Range: 800~1200mbar

4PID-20-3.3V Photoionization Sensor (PID Sensor) Electrical Characteristics
? Working Voltage: 3.2~3.4V
? Zero Voltage: 60±20mV
? Output: 1.5~2.5V
? Safe Approval: Ex is Pending

4PID-20-3.3V Photoionization Sensor (PID Sensor) Lifetime
? Recommending Storage Temperature: 0~20°C
? Operating Life: minimum 36 months ( not include UV lamp and detector)
? UV lamp Life: 24 months
? Warranty: 12 months

4PID-3.3V Photoionization Sensor Product & Performance Classification (10.6eV)-3.3V:

Range
 20ppm
 100ppm
 300ppm
 1000ppm
 2000ppm
 10000ppm
Part Number
 135-000-020
 135-000-120
 135-000-320
 135-000-130
 135-000-230
 135-000-140
Resolution
 5ppb
 25ppb
 75ppb
 250ppb
 500ppb
 2ppm
Sensitivity
 > 75mV/ppm
 > 15mV/ppm
 > 5mV/ppm > 1.5mV/ppm > 0.3mV/ppm > 0.15mV/ppm
Response Time(T90)
 ≤ 5second
 ≤ 5second
 ≤ 5second
 ≤ 3second
 ≤ 3second
 ≤ 3second
