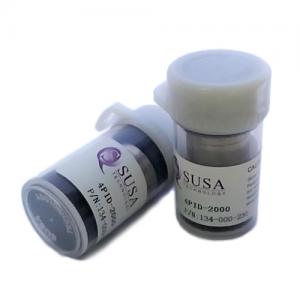

Photoionization Sensor (PID sensor) TVOC Detection - 4PID-2000
? Working principle: PID
? Measurement range: 0~2000ppm
? Resolution: 500ppb
? Sensitivity: > 0.3mV/ppm
? Response Time(T90): ≤3second
? Operating Temperature Range: -40~50°C
? Operating Humidity: 0~99% ( No condensing)
- Model Number: 4PID-2000
- Data Sheet:
- Quantity:
- - +
Product Specification
Photoionization Sensor (PID sensor) TVOC Detection
4PID-2000 Photoionization Sensor (PID sensor) Basic Characteristics
? Working principle: PID
? Measurement range: 0~2000ppm
? Resolution: 500ppb
? Accuracy: <±2% (Calibration Point)
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)
? Operating Pressure Range: 800~1200mbar
4PID-2000 Photoionization Sensor (PID sensor) Electrical Characteristics
? Working Voltage: 3.2~5V
? Zero Voltage: 100±50mV
? Output: 1.8~3V
? Safe Approval: Ex is Pending
4PID-2000 Photoionization Sensor (PID sensor) Lifetime
? Recommending Storage Temperature: 0~20°C
? Operating Life: minimum 5 years ( not include UV lamp and detector)
? UV lamp Life: minimum 10000 hours
? Warranty: 12 months
4PID Photoionization Sensor Product & Performance Classification(10.6eV)-4R:
|
Range |
20ppm |
100ppm |
300ppm |
1000ppm |
2000ppm |
10000ppm |
|
Part Number |
134-000-020 |
134-000-120 |
134-000-320 |
134-000-130 |
134-000-230 |
134-000-140 |
|
Resolution |
5ppb |
25ppb |
75ppb |
250ppb |
500ppb |
2ppm |
|
Sensitivity |
>75mV/ppm |
> 15mV/ppm |
> 5mV/ppm |
> 1.5mV/ppm |
> 0.3mV/ppm | > 0.15mV/ppm |
|
Response Time(T90) |
≤5second |
≤5second |
≤5second |
≤3second |
≤3second |
≤3second |
