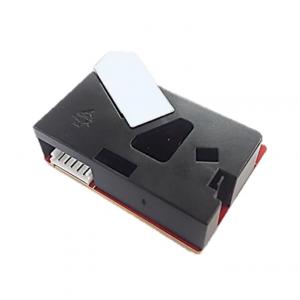

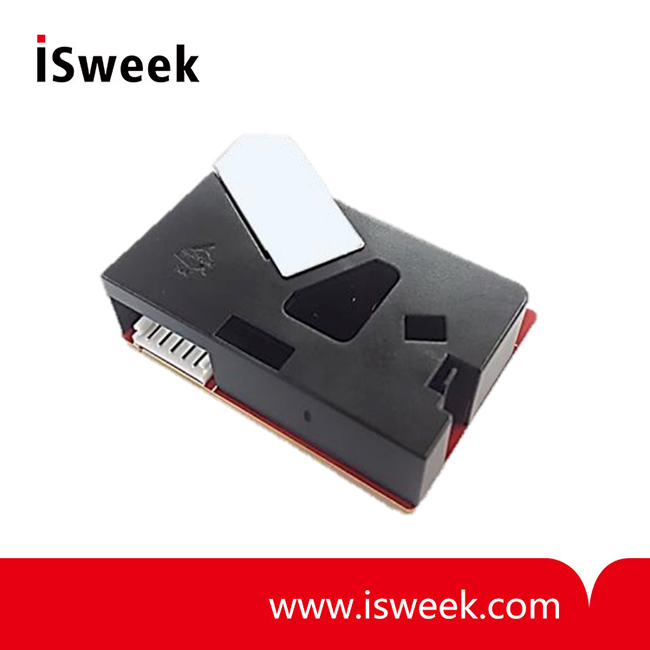

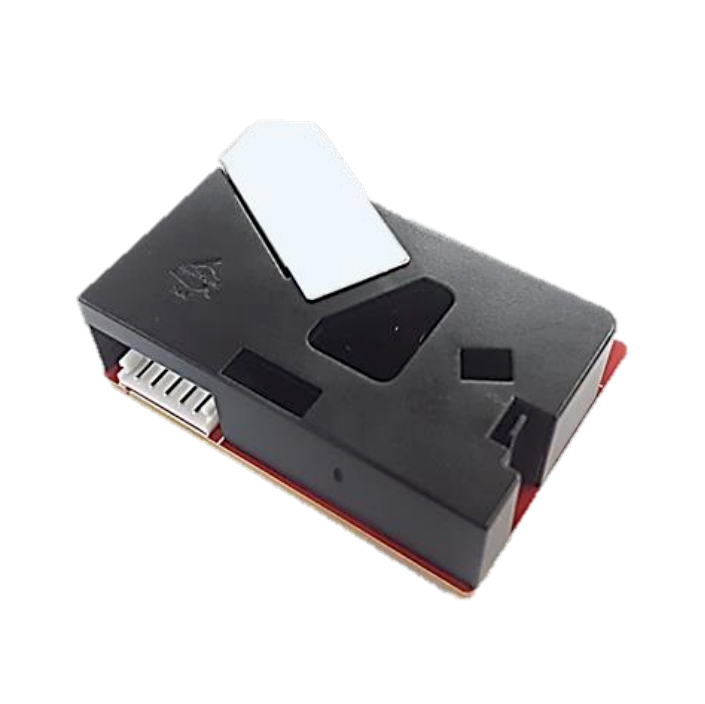

PM2.5 Particle Sensor Module - PDSM010

Product Specification

PDSM010?Particle Sensor Module?Product Summary
PDSM010 detects approx. 1μm particle such as house dust, pollen, germs, dust mites and cigarette smoke and measures the concentration of floating particles in a room space up to maximum 30m³.

This sensor is an ideal product for automatic room air monitoring system such as an air purifier.?

PDSM010's signal is converted to PWM output by internal circuit and MCU program. Also, the sensor's filter circuit and MCU program can remove a noise in order to operate more stably when a noise is in-flowed in the signal.?

PDSM010 has advantages of both stable detecting ?ability ?and ?high ?manufacturing efficiency.

The sensor does not have an additional control point (VR Trimmer) on the device unlike its previous model (DSM). It prevents potential malfunction often occurred by user's arbitrary modification.

PDSM010?Particle Sensor Module?Features
? Customized sensitivity for efficient control in application
? Detects approx. 1μm particle
? MCU Control (Factory Calibration)
? Easy maintenance
? PWM Output (Low Logic Pulse Active)
? Noise Protection

PDSM010?Particle Sensor Module?Applications
? Air cleaners, Air conditioners
? Ventilation System, Fan Control?
? IAQ Monitoring & Control
? IoT Device

PDSM010?Particle Sensor Module?Product Specification
