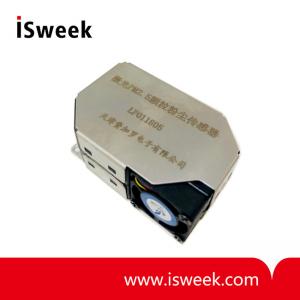

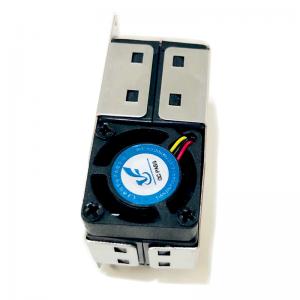

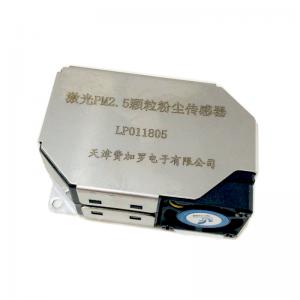

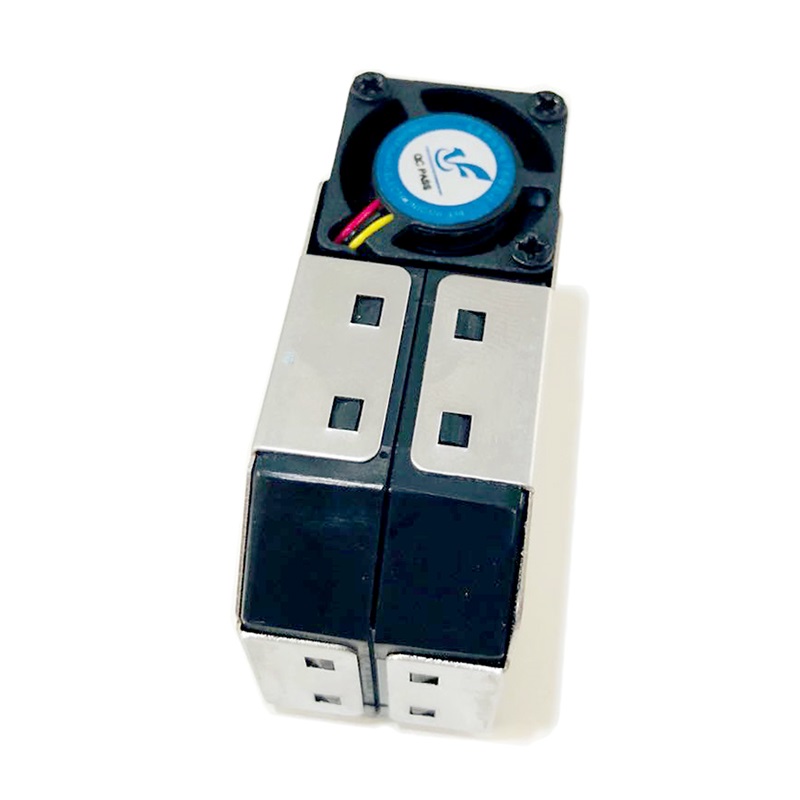

Laser PM2.5 Sensor - TF-LP01
? Distinguishable particle?: PM1.0, PM2.5, PM10?
? Measurement range: 0~999 ug/m3
? Mass concentration resolution?: 1 ug/m3?
? Response time?: <10S?
? Operating current?: <100mA?
? Operating temperature?: -10°C~50°C?
? Operating humidity?: ≤95%RH (non-condensation)
- Model Number: TF-LP01
- Data Sheet:
- Quantity:
- - +
Product Specification
TF-LP01 Laser PM2.5 Sensor Description
TF-LP01 type laser particle sensor is a small module for detection of particles in the air with scattering principle. It features compact size, high accuracy, repeatablity and consistency, and strong resistance against interference. It adopts ultra-silent fan, and is able to response in real-time and collect data continuously. The sensors are 100% tested and calibrated in factory.
TF-LP01 Laser PM2.5 Sensor Features
? High accuracy
? Fast response
? Compact in size
TF-LP01 Laser PM2.5 Sensor Applications
? Air purifier, portable air quality detector, smart home, etc.
TF-LP01 Laser PM2.5 Sensor Technical index
|
Distinguishable particle |
PM1.0, PM2.5, PM10 |
|
Interface type |
USART (3.3V TTL level), PWM (customized) |
|
Measurement range |
0~999 ug/m3 |
|
Measurement accuracy |
±10 ug/m3 @ 0~99 ug/m3; ±10% @ 100~999 ug/m3 |
|
Mass concentration resolution |
1 ug/m3 |
|
Response time |
<10S |
|
Operating voltage |
DC5.0V (±0.1V) |
|
Operating current |
<100mA |
|
Operating temperature |
-10°C~50°C |
|
Operating humidity |
≤95%RH (non-condensation) |
|
Storage temperature |
-30°C~70°C |
|
Overall dimensions |
51 x 33 x 22mm |
