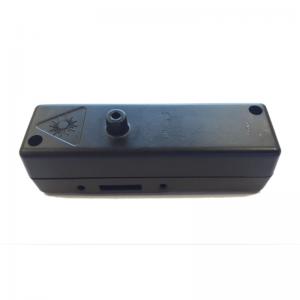

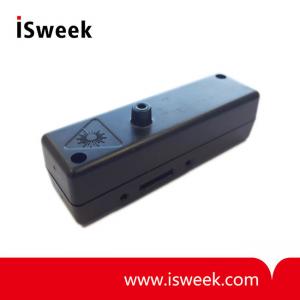

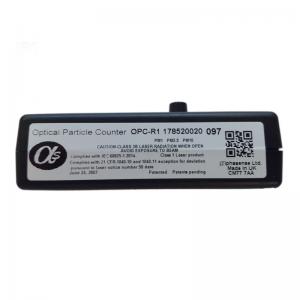

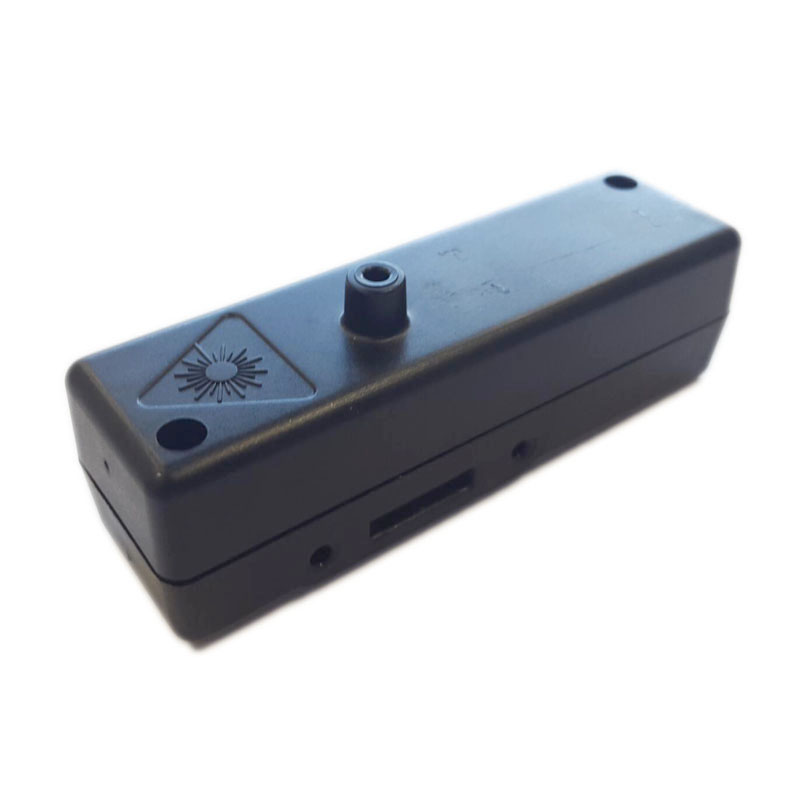

PM2.5 Particle Sensor - OPC-R1

? Particle range: 0.4 to 12.4 Spherical equivalent size
? Reports PM1, PM2.5, PM10 plus histograms
? PC software supplied
? Removable fan exit adaptor
? Small size and low power consumption
? Configurable to specific applications

Model Number: OPC-R1
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

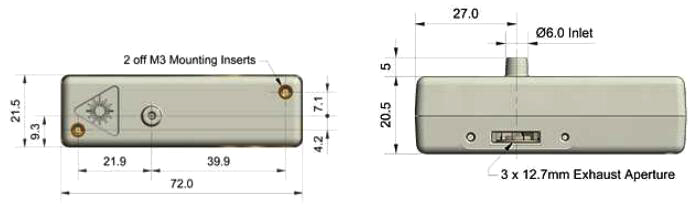

OPC-R1 PM2.5 Sensor Schematic Diagram

? Reports PM1, PM2.5, PM10 plus histograms
? PC software supplied
? Removable fan exit adaptor
? Small size and low power consumption
? Configurable to specific applications

OPC-R1 PM2.5 Sensor MEASUREMENT
Particle range	Spherical equivalent size (based on RI of 1.5)	0.4 to 12.4
Size categorisation	Number of software bins	16
Sampling interval	Histogram period (seconds)	1 to 30
Total flow rate	L/min (typical)	1.6
Max particle count rate	particles/second	10,000
Max coincidence probability	%concentration at 10 6 particles/L	0.84
	%concentration at 500 particles/L	0.24

OPC-R1 PM2.5 Sensor POWER
Measurement mode	mA (typical)	95
Laser on, fan off	mA (typical)	< 5
Voltage range	VDC	4.8 to 5.2
Switch-on transient	mW for 1ms	< 5000

OPC-R1 PM2.5 Sensor KEY SPECIFICATIONS
Digital interface	(No data storage)	SPI Mode 1
Laser classification	as enclosed housing	Class 1
Temperature range	°C	-10 to 50
Humidity range	% rh (continuous)	0 to 95 (non-condensing)
Weight	g	< 30
