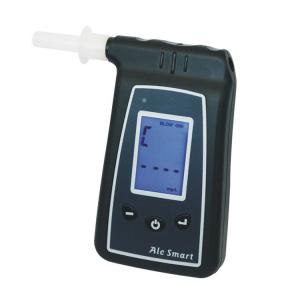

Portable Breath Alcohol Tester - AT8020

Product Specification

AT8020 Breath Alcohol Tester Brief introduction
AT8020 is an advanced portable breath alcohol tester, its core component adopts new high-tech electrochemical sensor which can get more accurate alcohol concentration value,  with  strong anti-interference ability. The admirable human-device interface makes operation more concise and convenient, the color LCD makes interface more clear and beautiful. Moreover, the one-off anti-return mouthpiece design ensures the health and safety of users.

AT8020 Breath Alcohol Tester Main Technical Features
? Advanced 16 bit low power consumption MCU
? Electrochemical sensor, good reliability and accuracy
? LCD indication
? Simple button operation
? Low pressure and testing rejection function
? Measurement unit and alarming level adjustable function
? Testing record review function
? Passive testing available
? Short warm-up time, fast response and resume
? Adopt anti-return mouthpiece for health and safety
? Power saved design

AT8020 Breath Alcohol Tester Technical information:
? Sensor type: Electrochemical (Fuel cell) sensor
? Test Range: 0.000～2.000mg/l (0.40%B.A.C, 4.0‰B.A.C, 4.0g/l)
? Alarm level: 0.250 mg/L (could be modified)
? Resolution: 0.01 mg/L
? Display: 1.8 inch LCD screen
? Working Environment:
  Temperature: 10℃～40℃
  Humidity: <95%RH (No Dews)
? Storage conditions: 0℃～50℃
? Battery: 3 x AAA 1.5V batteries
? Dimension l x b x h: 114 x 66 x 26mm
? Weight: about 100g (excluding battery)
? Sensor life: 2 years
? Accuracy:
  <0.400: 0.050 mg/L
  0.400 - 1.000: 20%
  ≥1.000: 30%
