Product Specification

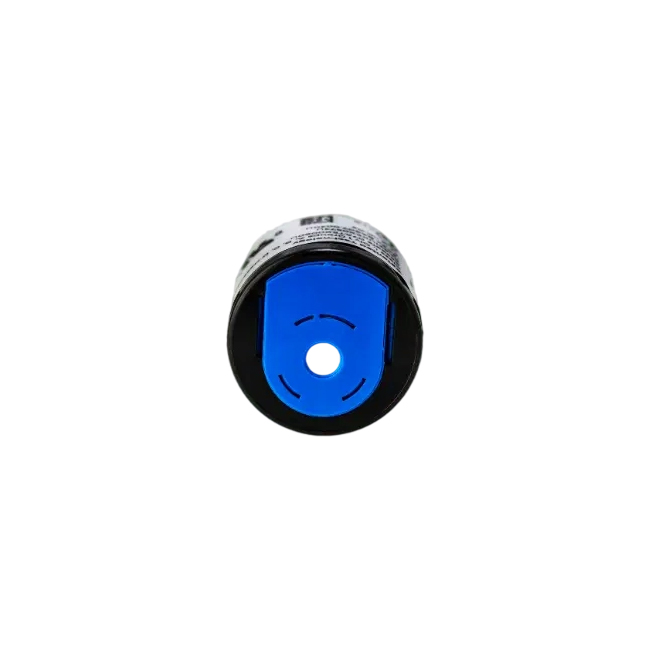

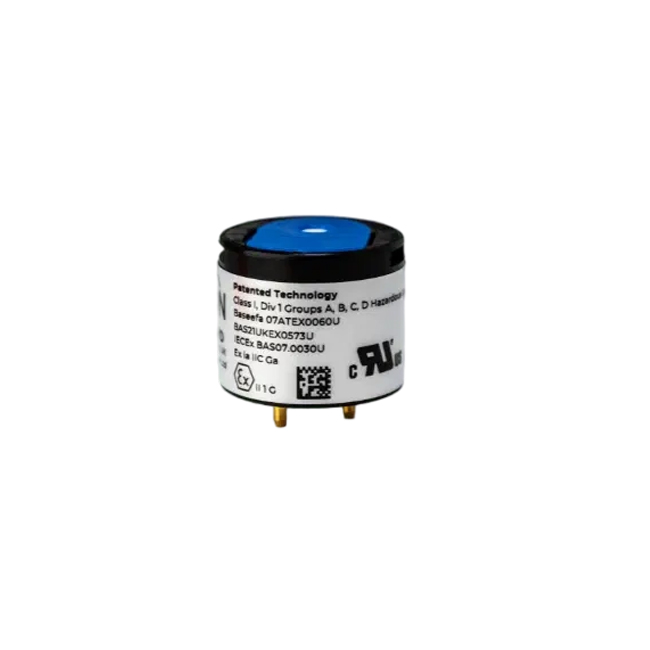

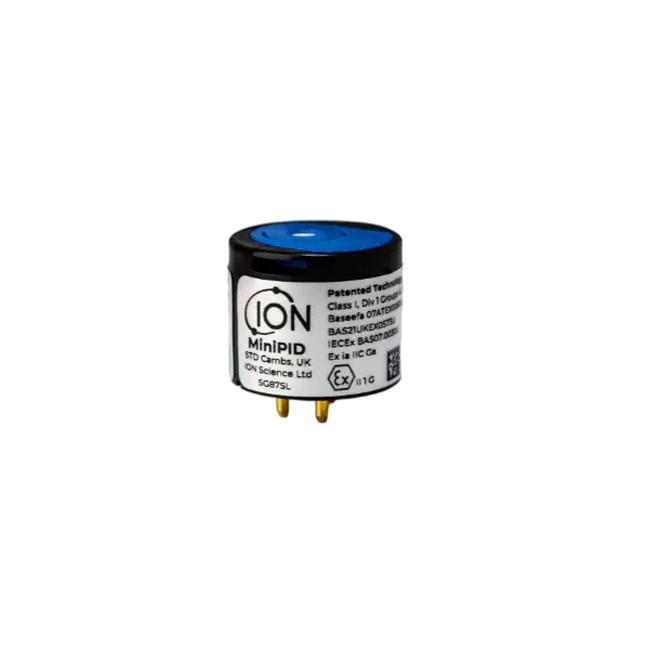

PPM Gas Sensor  PID VOC Gas Sensor OEM  MiniPID 2 PPM Description：

Our MiniPID 2 PPM VOC Gas Sensor is designed for detecting VOCs over the widest dynamic range on the market without compromising performance. It is also the only PID sensor with a lamp out diagnostic.

The MiniPID 2 PPM VOC Gas Sensor – MiniPID 2 is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.

The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The MiniPID 2 PPM VOC Gas Sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.

PPM Gas Sensor  PID VOC Gas Sensor OEM  MiniPID 2 PPM Key Features：

• Humidity Resistant
• 10,000 Hours Continuous Lamp Life
• Anti-contamination Design
• 10.6 eV Lamp
• Removable, Pneumatically Sealed Sensing Electrode Stack
• Series 4 / A
• 12-Month Warranty (Excluding Electrode Stack)
• Expected Life > 5 Years
• Manufactured in UK

? Process control
