Rugged Water Temperature Sensor - WQ101

? Output: 4-20 mA?
? Range?: -50° to +50°C?
? Accuracy: ±0.2°F or ±0.1°C?
? Operating Voltage: 10 to 36 VDC?
? Warm-up Time: 5 seconds minimum?
? Operating Temperature?: -58° to +212°F (-50° to +100°C)?
? Stainless steel housing

Model Number: WQ101
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

WQ101 Water Temperature Sensor Description

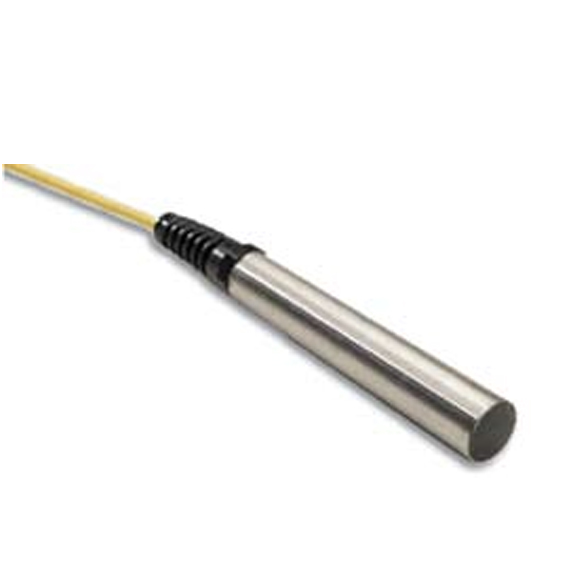

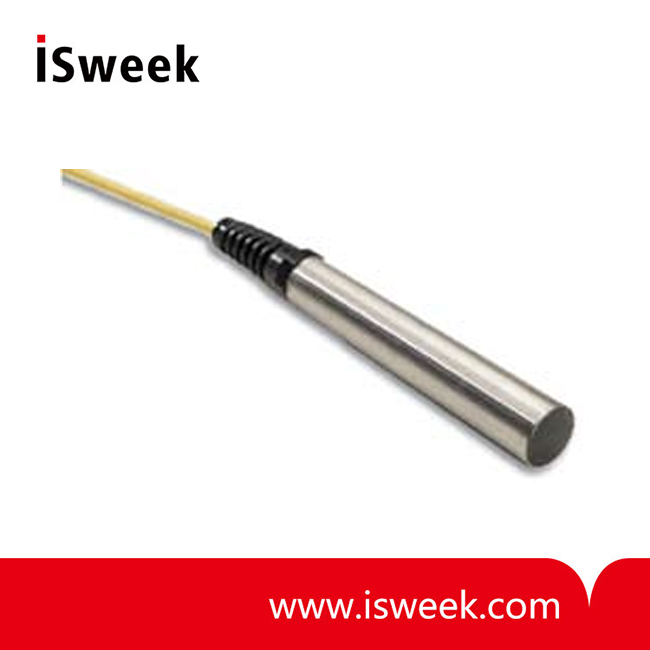

WQ101 Temperature Sensor is a rugged and reliable device for highly accurate submersible water temperature measurement. The sensor's probe is molded to 25' of marine grade cable, with lengths up to 500' available upon request. The WQ101 has a two-wire configuration for minimum current draw. The unit’s electronics are completely encapsulated in marine grade epoxy within a stainless steel housing.

WQ101 Water Temperature Sensor Features
? Fully encapsulated electronics
? 4-20 mA output
? Marine grade cable with strain relief
? Stainless steel housing

WQ101 Water Temperature Sensor Applications
Ideal for stream and lake monitoring, aquaculture studies, baseline analyses, mitigation monitoring, and other environmental applications.

WQ101 Water Temperature Sensor Specifications

Output	4-20 mA
Range	-50° to +50°C
Accuracy	±0.2°F or ±0.1°C
Maximum Pressure	Open Water: 0 to 200 psi Online: 50 psi
Operating Voltage	10 to 36 VDC
Current Draw	Same as sensor output
Warm-up Time	5 seconds minimum
Operating Temperature	-58° to +212°F (-50° to +100°C)
Size of Probe	Open Water: ?" dia. x 4?" long (1.9 cm dia. x 11.4 cm long) Online: 1.7" dia. x 8" long (4.3 cm dia. x 20.3 cm long)
Weight	Open Water: 8 oz (227 g) Online: 9.4 oz (272 g)

WQ101 Water Temperature Sensor Ordering & Options

Order No.	Description
WQ101	Temperature Sensor for Open Water (includes 25' cable)
WQ101-O	Online Temperature Sensor (with 3/4" NPT thread and 25' cable)
WQEXC	Extra Sensor Cable, per foot (up to 500')
