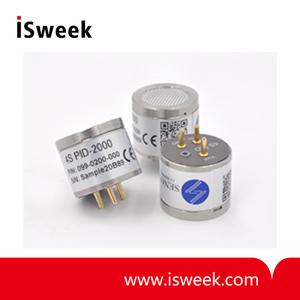

SemeaTech Photoionization Detector (PID) Sensors - 4-Series

Photon energy

10.6 eV

Measurement range

0 ~ 10,000 ppm isobutylene

Resolution

1 ~ 2,000 ppb isobutylene

Response time (T90)

< 5 seconds

Baseline shift (20℃)

70 ± 30 mV

Linearity

linear from 0.045 ~ 2.5 V

Supply voltage

3.2 ~ 5.5 V

Working current

< 80 mA at 5 V

Output signal

0.045 ~ 2.5 V

Enclosure

Stainless steel

Weight

15 grams

Temperature range

-20℃ ~ +50℃

Pressure range

1 atm ± 10%

Humidity range

15% ~ 95%RH  Non-condensing
