SemeaTech Photoionization Detector (PID) Sensors - 7-Series

Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs).

  • Model Number: 7-Series
  • Data Sheet: Date Sheet File
Quantity:
- +

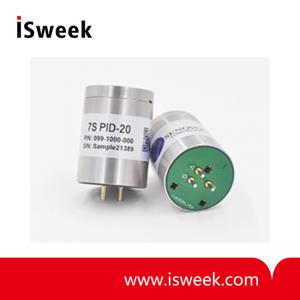

  • SemeaTech  Photoionization Detector (PID) Sensors
Mouse over image to zoom
Share:

Product Specification

    Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs). In general, any compound with ionization energy (IE) lower than that of the lamp photons can be measured. Based on its proprietary ultraviolet (UV) lamp technology, Senovol PID sensors have the advanced features of high UV outputs, and long lamp life spans.

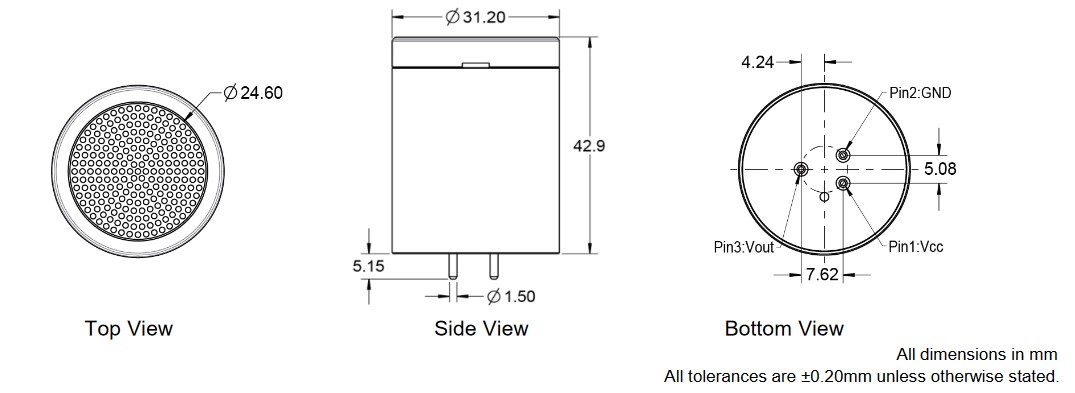

Product Dimensions





Performance Characteristics

Photon energy

10.6 eV

Measurement range

0 ~ 20 ppm

Resolution

1 ppb

Response time (T90)

< 10 seconds

Baseline shift (20)

70 ± 30 mV

Linearity

linear from 0.05 ~ 3.3 V



Electrical

Supply voltage

3.3 ~ 5.0 V (3.3 V recommended)

Working current

< 180 mA @ 3.3 V

Output signal

0.05 ~ 3.3 V



Mechanical

Enclosure

Stainless steel

Weight

70 grams



Environmental

Temperature range

-20~ +50

Pressure range

1 atm ± 10%

Humidity range

0% ~ 99%RH  Non-condensing
