SiC UV photodetector - TOCON_ABC1
? Broadband SiC based UV photodetector in TO5 housing with concentrator lens cap
? 0 … 5 V voltage output
? peak wavelength at 280 nm
? max. radiation (saturation limit) at peak is 18 nW/cm2, minimum radiation (resolution limit) is 1.8 pW/cm2
? Applications: very low UV radiation, flame detection
- Model Number: TOCON_ABC1
- Data Sheet:
- Quantity:
- - +
Product Specification
TOCON_ABC1
Broadband SiC based UV photodetector with integrated amplifier

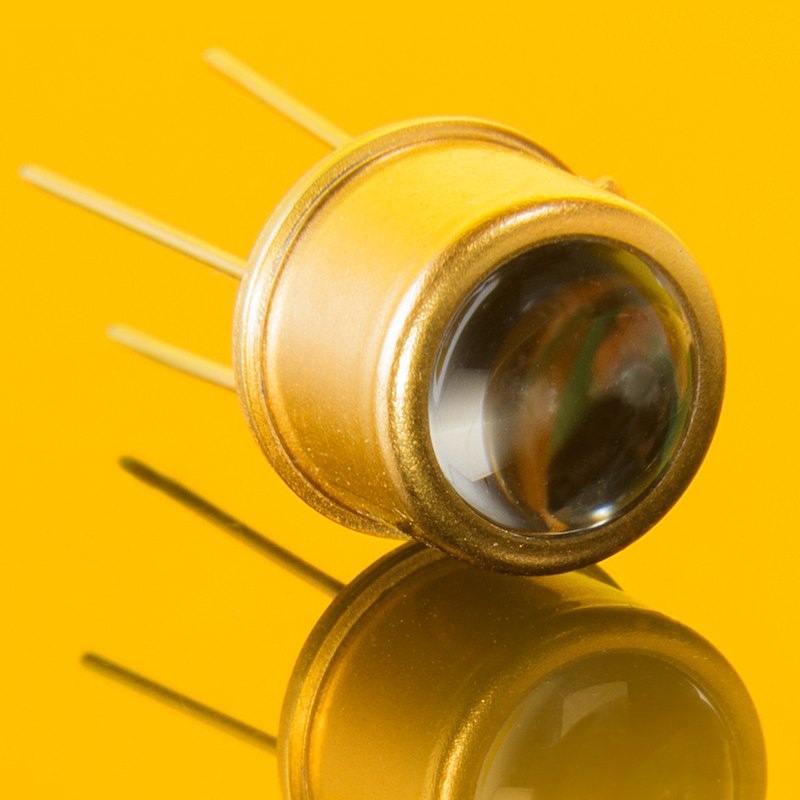

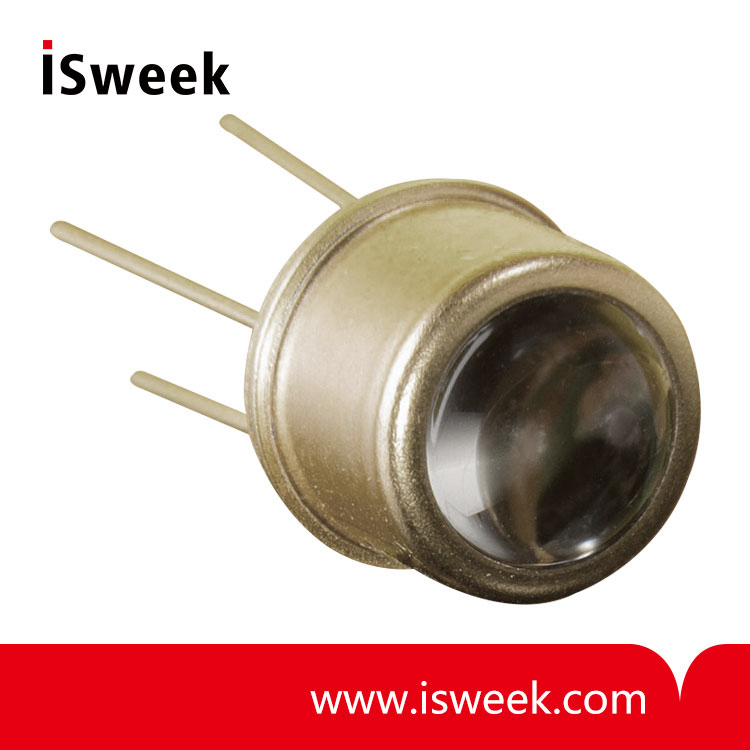

◆ TOCON_ABC1 SiC UV photodetector General Features
Properties of the TOCON_ABC1 SiC UV photodetector
? Broadband SiC based UV photodetector in TO5 housing with concentrator lens cap
? 0 … 5 V voltage output
? peak wavelength at 280 nm
? max. radiation (saturation limit) at peak is 18 nW/cm2, minimum radiation (resolution limit) is 1.8 pW/cm2
? Applications: very low UV radiation, flame detection
What is a TOCON?
A TOCON is a 5 Volt powered UV photodetector with integrated amplifier
converting UV radiation into a 0 … 5V voltage output. The V out pin
of the TOCON can be directly connected to a controller, a voltmeter or
any other data analyzing device with voltage input. Highly modern
electronic components and a hermetically sealed metal housing with UV
glass window eliminates noise caused by parasitic resistance paths
inside the package or EMI. A TOCON is a perfect solution for each
industrial UV sensing application starting from flame detection at
pW/cm2 level up to UV curing lamp control at W/cm2 level. This thirteen
orders of magnitude range is covered by ten different TOCONs that
differ by their sensitivity. The TOCONs are produced as UV broadband
sensors or with filters for selective measurement.
Silicon Carbide (SiC) detector chip inside
Sophisticated electronics make a TOCON a reliable component in harsh
environments as well as for extremely low or extremely high UV
radiation. But what makes the TOCON a quasi eternally living sensor is
the sglux in-house produced SiC detector chip featured by a
PTB-reported extreme radiation hardness.
◆ TOCON_ABC1 SiC UV photodetector Specifications
| Parameter | Symbol | Value | Unit |
|
|
|
|
|
| Spectral Characteristics |
|
|
|
| Typical Responsivity at Peak Wavelength | Smax | 280 | mV/nW/cm2 |
| Wavelength of max. Spectral Responsivity | λmax | 280 | nm |
| Responsivity Range (S=0.1*Smax) | – | 221 … 358 | nm |
| Visible Blindness (Smax/S>405nm) | VB | > 1010 | – |
|
|
|
|
|
| General Characteristics (T=25°C, Vsupply=+5 V) |
|
|
|
| Supply Voltage | VSupply | 2.5 … 5 | V |
| Saturation Voltage | VSat | VSupply - 5% | V |
| Dark Offset Voltage | VOffset | 700 | μV |
| Temperature Coefficient at Peak | Tc | < -0.3 | %/K |
| Current Consumption | I | 150 | μA |
| Bandwidth (-3 dB) | B | 15 | Hz |
| Risetime (10-90%) | trise | 0.182 | s |
| (other risetimes on request) |
|
|
|
|
|
|
|
|
| Maximum Ratings |
|
|
|
| Operating Temperature | Topt | -25 … +85 | °C |
| Storage Temperature | Tstor | -40 … +100 | °C |
| Soldering Temperature (3s) | Tsold | 300 | °C |
