SMARTEYE ColorWise True Color Sensor - CW Series

Product Specification

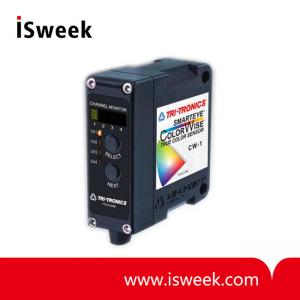

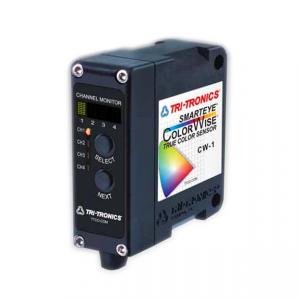

SMARTEYE ColorWise True Color Sensor Description
The SMARTEYE^? COLORWISE^TM True Color Sensor is the most feature packed color sensor available. Designed to work as well as an instrument or spectrometer, this sensor can solve the most difficult color applications at higher speeds than color cameras or the closest priced competitive product. The 4 Channel Monitor provides a visual confirmation of performance without having to switch channel selections or touch the sensor in any way. Providing a choice in speed versus resolution, the SMARTEYE^? COLORWISE^TM puts the controls of the performance of the sensor in the hands of the operator; allowing for more application solutions, and removing the limits that either speed or resolution alone can offer.

With control over Tolerance, Light Intensity, Output Configuration (NPN or PNP), Timers, Input Configuration (Edge or Gate), the SMARTEYE^? COLORWISE^TM provides a tailored and customized solution for the most difficult color sorting, or inspection problems facing today's packaging and production lines. The SMARTEYE^? COLORWISE^TM also comes equipped with 4 digital and 3 analog outputs that not only help to sort products by color, but can determine specific color signatures as well.

SMARTEYE ColorWise True Color Sensor Features
? 4-Digital Outputs (NPN or PNP)
? 4-Channel Monitor for at-a-glance performance evaluation
? 3-Analog Outputs (XYZ or xyY); 0 to 5 VDC
? Adjustable Tolerance for each channel
? Adjustable Timers for each channel: One Shot; On Delay; Off Delay; Latch
? 14-Pin 6" pigtail 1/4-turn locking connector or cable version
? Adjustable LED light intensity
? Select high speed versus high resolution (CW-1 model only)
? Short range and long range models available
? Remote Color Capture
? Button Lockout

SMARTEYE ColorWise True Color Sensor Benefits
? Flexible and convertible for many different color applications
? Useful for color sorting and color verification applications all in one sensor
? No-touch setup via remote color capture wire (selectable input; NPN/Negative or PNP/Positive)
? Reduce cost and speed constraints of color cameras or spectrometers
? Quick digital changeover
? Tamperproof with button lockout feature

SMARTEYE ColorWise True Color Sensor Applications
? Automotive - Trim Color Assembly, Carpet and Mat matching, Paint Verification
? Textile - Color Verification, Die Quality Control
? Bottle Industry - Color Sorting, Color Verification, Quality Inspection
? Food Industry - Cooking Time Control, Quality Inspection/Control
? Graphic Art - Color Verification, Quality Control, Missing Color Detection

SMARTEYE ColorWise True Color Sensor Specifications
