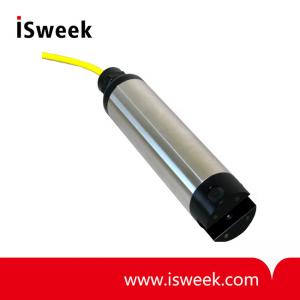

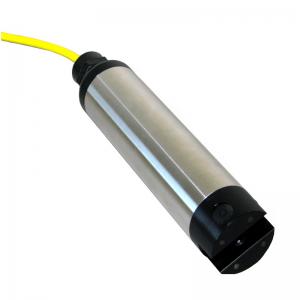

Submersible Water Quality Sensor Turbidity Sensor - WQ730
? Range: 0-50 NTU and 0-1000 NTU
? Accuracy: +/- 1% of full scale?
? Meter Resolution: 12 bit
? Output: 4-20mA
? Operating Voltage: 10-36 VDC @ 40 MS
? Current Draw: 30 mA plus sensor output
? Warm Up Time: 5 seconds minimum
? Ope?rating Temperature: 14 to 122°F (-10 to +50°C)
? Maximum Pressure: 30 psi
- Model Number: WQ730
- Data Sheet:
- Quantity:
- - +
Product Specification
WQ730 Turbidity Sensor Description
WQ730 Turbidity Sensor is a highly accurate submersible instrument for in-situ environmental or process monitoring. Applications for the WQ730 include: water quality testing and management, river monitoring, stream measurement, reservoir water quality testing, groundwater testing, water and wastewater treatment, and effluent and industrial control.
WQ730 Submersible Water Quality Sensor Turbidity Sensor Features
? 4-20 mA output
? Marine grade cable with strain relief
? In-situ turbidity measurement
? Simple and convenient to use
? Rugged stainless steel and Delrin sensor housing
WQ730 Turbidity Sensor Specifications
| Range |
0-50 NTU and 0-1000 NTU |
|
Accuracy |
+/- 1% of full scale |
|
Meter Resolution |
12 bit |
|
Output |
4-20mA |
|
Method |
Nephelometer with correction |
|
Operating Voltage |
10-36 VDC @ 40 MS |
|
Current Draw |
30 mA plus sensor output |
|
Warm Up Time |
5 seconds minimum |
|
Operating Temperature |
14 to 122°F (-10 to +50°C) |
|
Materials |
306 stainless steel, delrin, polyether jacketed cable |
|
Maximum Pressure |
30 psi |
|
Light Source |
Infrared LED, (880nm) |
|
Cable Length |
25 ft standard (optional to 500 ft) |
|
Size |
Body= 1 1/2 x 8.5 inches (3.8 x 21.6 cm) (Dia x Length) |
|
Weight |
1lb (454 g) (Sensor) |
