Transmission Measurement Device - TMX01

? Cover?: Aluminium suitcase?
? Dimensions (WxHxD)?: 370 x 330 x 150 [mm]?
? Weight: 3,0 kg?
? Operation time?: approx. 2,5 hours?
? Measuring accuracy?: ± 0,5%?
? Ramp-up time?: max. 30 seconds?
? Temperature range?: 0-30°C?
? Display?: 4 lines?

Model Number: TMX01
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TMX01 Transmission Measurement Device Description
The mobile transmission analysis instrument TMX01 is made for optimising design work and control of water treatment systems. With this unit, water samples can be evaluated according to DIN 38404. A fluid sample can be taken and its transmittance measured.

The TMX01 can also be used for regular inspections and analysis of water quality.

TMX01 Transmission Measurement Device System-Features
? Accurate measuring
? Repeatable measurements
? Battery powered
? Light and portable

TMX01 Transmission Measurement Device Advantages
? Compact design
? Very user friendly
? Short start-up time
? Fast calibration

TMX01 Transmission Measurement Device Features

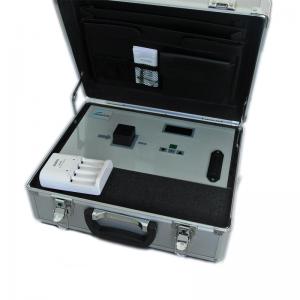

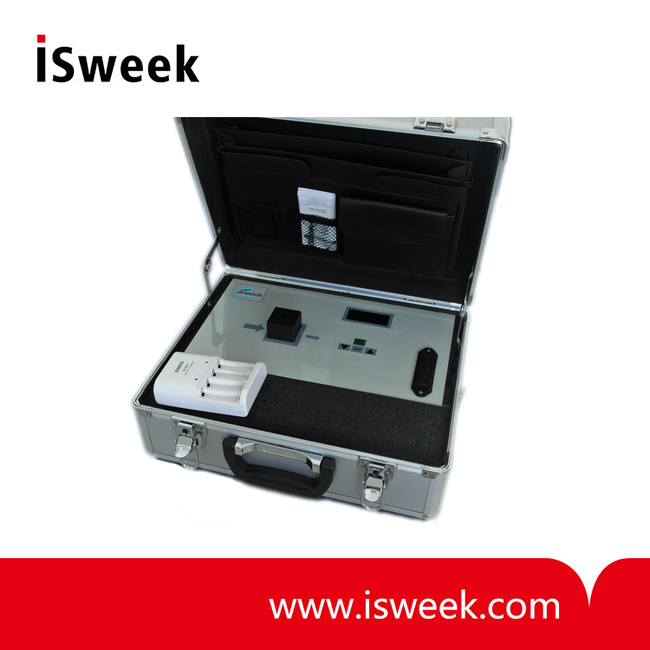

This instrument comes in a robust Aluminium suitcase, giving maximum protection against impact. The unit is battery powered and operates with just four buttons. This meter can be operated very easily and can be always ready for use. A removable charger takes care of power which is included with the instrument.

TMX01 Transmission Measurement Device Technical Data

Cover	Aluminium suitcase
Dimensions (WxHxD)	370 x 330 x 150 [mm]
Weight	3,0 kg
Power supply	Battery driven, 4x NiMH-accu, each 1.500 mA
Operation time	approx. 2,5 hours
Measuring accuracy	± 0,5%
Ramp-up time	max. 30 seconds
Temperature range	0-30°C
Display	4 lines
Scope of delivery	Suitcase with unit Quartz-cuvette 10 mm 4x NiMH rechargeable batt. Recharger for accu (230 V)
