Transmitter (Voltage Amplifier) of Photocurrent to 0 - 5 V Signal - VOLTCON Series

? voltage amplifier
? conversion of photocurrent into a 0 to 5 V output signal
? maximum photocurrent: 500 μA, 5 μA or 50 nA
? Supply voltage: 7 - 24 V
? Dark output voltage: < 1 mV
? Operating temperature: -20 ... +80 °C

  • Model Number: VOLTCON Series
  • Data Sheet: Date Sheet File
Quantity:
- +

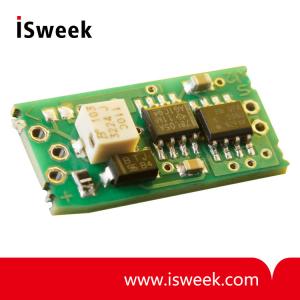

  • Transmitter (Voltage Amplifier) of Photocurrent to 0 - 5 V Signal

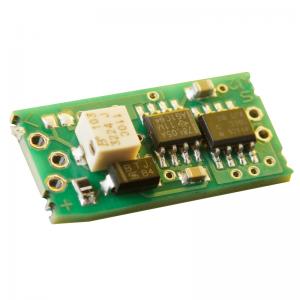

  • Transmitter (Voltage Amplifier) of Photocurrent to 0 - 5 V Signal
Mouse over image to zoom
Share:

Product Specification

VOLTCON series
Transmitter of photocurrent to 0 - 5 V signal

VOLTCON series Transmitter (Voltage Amplifier) of photocurrent Properties
The VOLTCON converts a photocurrent into an output voltage between 0 and 5 V and can be connected to any PLC system.

Three models with different measurement ranges are available. The amplification factor (gain) can be adjusted by a potentiometer. The measurement range can also be customized by replacing passive components.

VOLTCON series Transmitter (Voltage Amplifier) of photocurrent Specifications

Parameter
 Value
Photocurrent measurement range
 VOLTCON_low  500 μA
 VOLTCON_med 5 μA
 VOLTCON_high 50 nA
Supply voltage
 7* ... 24 V (*usable down to 5V, but this is not recommended)
Gain adjustment range
 ± 35%
Dark output voltage
 < 1 mV
Dimensions
 13 x 26 x 8 mm (WxLxH)
Operating temperature
 -20 ... +80 °C
Storage temperature
 -40 ... +80 °C
Standards
 RoHS 2 2011/65/EU, DIN IEC 60381-2

We strongly recommend to process this product on ESD protected workplaces.
