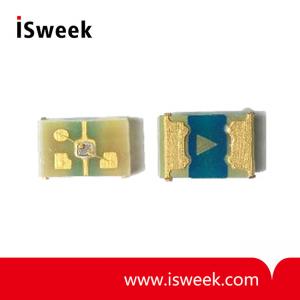

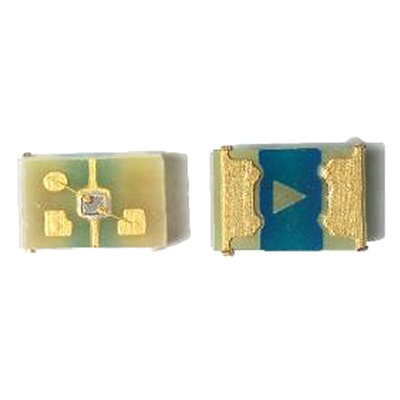

UV-B Sensor - GUVB-C21SD

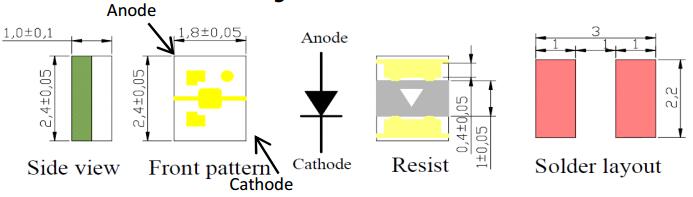

- Chip size:0.4mm,COB 2418 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Model Number: GUVB-C21SD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. UV Sensor GUVB-C21SD Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. UV Sensor GUVB-C21SD Applications
UV Index Monitoring
4. UV Sensor GUVB-C21SD Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1μ~100m W/cm2
Soldering Temperature: 260℃
5. UV Sensor GUVB-C21SD Characteristics (at 25℃)
Dark Current: 1nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.11A/W
Spectral Detection Range: 240~320nm
Active area: 0.076mm2
