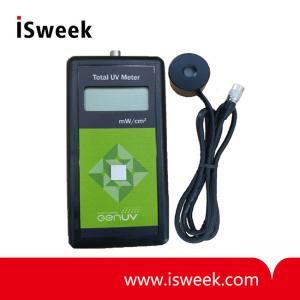

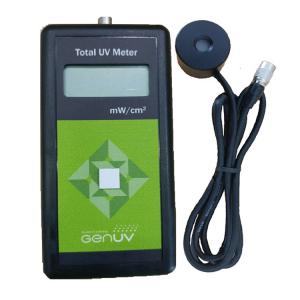

UV Radiometer 7.0 - GUVx-T1xS7-LA9
- 4.0 Digit LCD display
- Storage Temperature: 0 ~ 60°C
- Operating Temperature: 0 ~ 50°C
- Operating Humidity: 10 ~ 85%RH
- Spectral Detection Range:
GUVV-T10S7-LA9: 230 ~ 395nm
GUVC-T10S7-LA9?: 220 ~ 280?nm
GUVI-T11S7-LA9?: 220 ~ 320?nm
- Model Number: GUVx-T1xS7-LA9
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVx-T1xS7-LA9 UV Radiometer 7.0 Description
- Easly Check UV light intensity and UV Index
GUVx-T1xS7-LA9 UV Radiometer 7.0Features
- 4.0 Digit LCD display
- Detachable Sensor probe
- Handheld UV intensity meter
GUVx-T1xS7-LA9 UV Radiometer 7.0Applications
- UV Lamp Intensity & Aging
- UV Index measurement
- UV light transmittance measurements
GUVx-T1xS7-LA9 UV Radiometer 7.0 Constitution

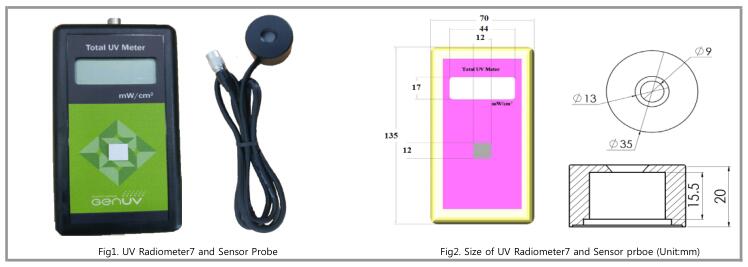

GUVx-T1xS7-LA9 UV Radiometer Dimensions
|
Height(mm) |
Width(mm) |
Thickness(mm) |
Weight(g) |
Material |
|
135 |
70 |
25 |
100 (without batt.) |
ABS |
Sensor probe Dimensions
|
Size(mm) |
Window(mm) |
Connection cable(m) |
Weight(g) |
Material |
|
?35 , 20h |
?9 |
1 | 20 | AL-60 |
|
Parameter |
Min |
Typ |
Max |
Unit |
Remark |
|
Storage Temperature |
0 |
|
60 |
°C |
|
|
Operating Temperature |
0 |
|
50 |
°C |
|
|
Operating Humidity |
10 |
|
85 |
%RH |
|
|
Battery |
|
9 |
|
VDC |
DC 9V Battery |
GUVx-T1xS7-LA9 UV Radiometer 7.0 Function
|
Division |
Model Name |
Spectral Detection Range |
Unit |
Absolute Power |
|
Total UV Meter |
GUVV-T10S7-LA9 |
230 ~ 395 |
nm |
0.0 ~ 100.0 mW/cm2 |
|
UVC Meter |
GUVC-T10S7-LA9 |
220 ~ 280 |
nm |
0.0 ~ 100.0 mW/cm2 |
|
UV Index Meter |
GUVI-T11S7-LA9 |
220 ~ 320 |
nm |
0.0 ~ 50.0 UVI |
