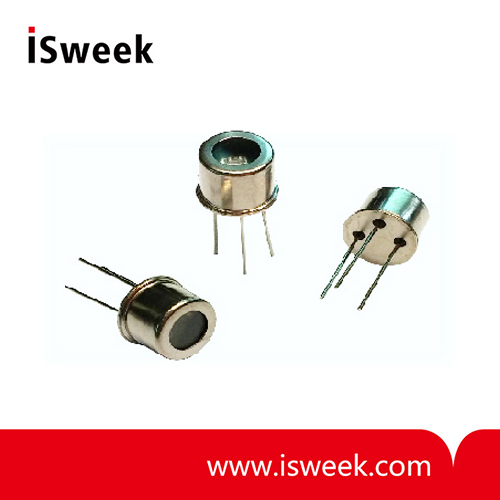

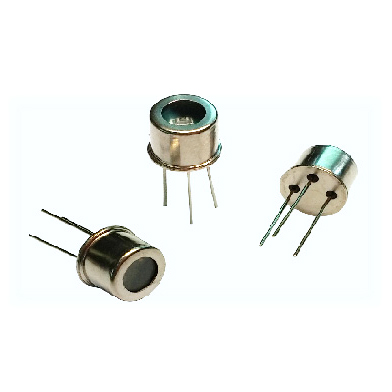

UV Sensor Module - GUVC-T21GH
- Single Supply Voltage Operation
- Amplified Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
- Supply Voltage: 1.8~5.5V
- Responsivity: 0.6mV/nW
- Spectral Detection Range: 220~280nm
- Model Number: GUVC-T21GH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
1. GUVC-T21GH UV Sensor Module Features
Single Supply Voltage Operation
Amplified Voltage Output
High Sensitivity and Good Solar Blindness
Small and Compact Size
2. GUVC-T21GH UV Sensor Module Applications
Pure UV-C Monitoring
Sterilization Lamp Monitoring

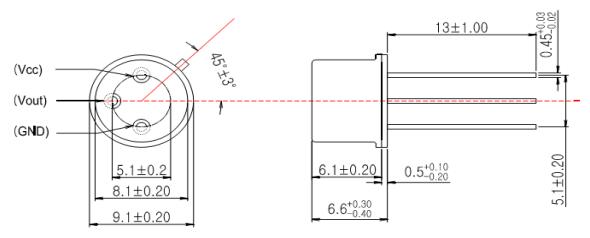

3. GUVC-T21GH UV Sensor Module Outline Diagrams and Dimensions
4. GUVC-T21GH UV Sensor Module Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. GUVC-T21GH UV Sensor Module Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50μA
Responsivity: 0.6mV/nW
Spectral Detection Range: 220~280nm
Output Voltage: 0.355V
Offset Voltage: 0.01V
Detection Power Range: 0~14.1mW/cm2
Rising Time: 3ms
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. GUVC-T21GH UV Sensor Module Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50μA
Responsivity: 0.6mV/nW
Spectral Detection Range: 220~280nm
Output Voltage: 0.355V
Offset Voltage: 0.01V
Detection Power Range: 0~14.1mW/cm2
Rising Time: 3ms
