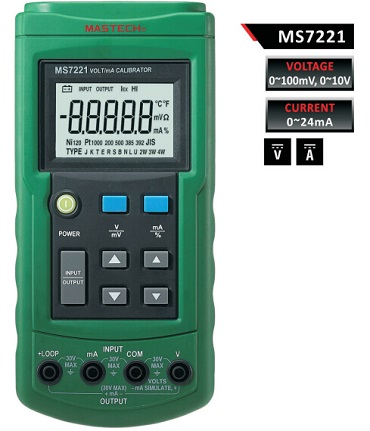

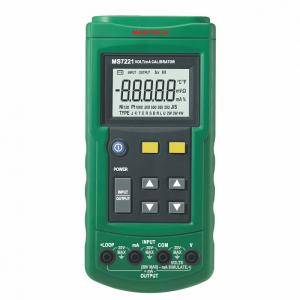

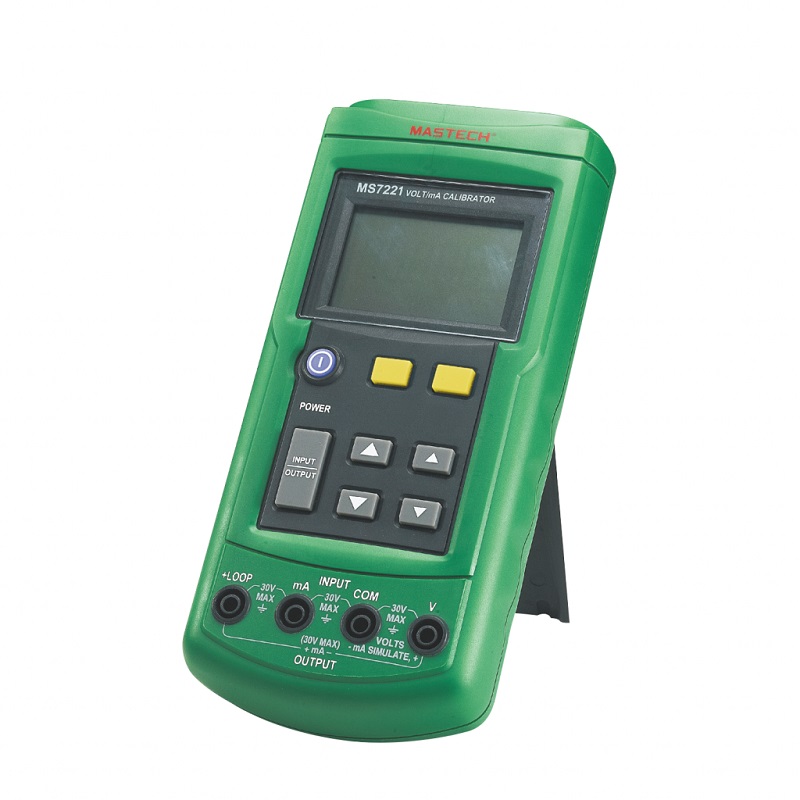

Voltage/mA Calibrator - MS7221
? Storage Temperature -40°C~60°C
? Operating Temperature -10°C~55°C
? Operating Altitude 3000 meters maximum
? Vibration: Random 2G, 5Hz~500Hz
? Shock: 1 Meter drop test
? Low Batter Display
? Auto Power Off
? Power Supply: 1 x 9V 6LR61 Battery
? Certificate: CE / ETL / RoHS
- Model Number: MS7221
- Data Sheet:
- Quantity:
- - +
Product Specification
MS7221 - Voltage/mA Calibrator
MASTECH MS7221 Volt / mA Calibrator is a source and measurement tool. This calibrator can be used in measurement output 0 to 24 mA DC current loop, and 0 to 10V DC voltage. But the calibrator cannot be used to measurement and source simultaneously.
MS7221 Voltage/mA Calibrator Features
? Storage Temperature -40°C~60°C
? Operating Temperature -10°C~55°C
? Operating Altitude 3000 meters maximum
? Temperature coefficient: ±0.005% of range per °C for thetemperature range -10~18°C and 28~55°C
? Humidity: 95% (10°C to 30°C) / 75% (30°C to 40°C) / 45% (40°C to 50°C) / 35% (50°C to 55°C)
? Vibration: Random 2G, 5Hz~500Hz
? Shock: 1 Meter drop test
? Low Batter Display
? Auto Power Off
MS7221 Voltage/mA Calibrator General Specifications
? Power Supply: 1 x 9V 6LR61 Battery
? Product Size: 190mm x 89mm x 42mm / 7.5" x 3.5" x 1.7"
? Product Weight: 350g/0.77lb
? Certificate: CE / ETL / RoHS

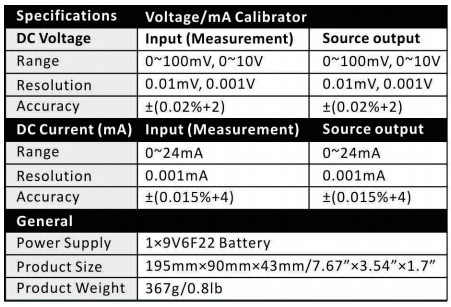

MS7221 Voltage/mA Calibrator Specifications
