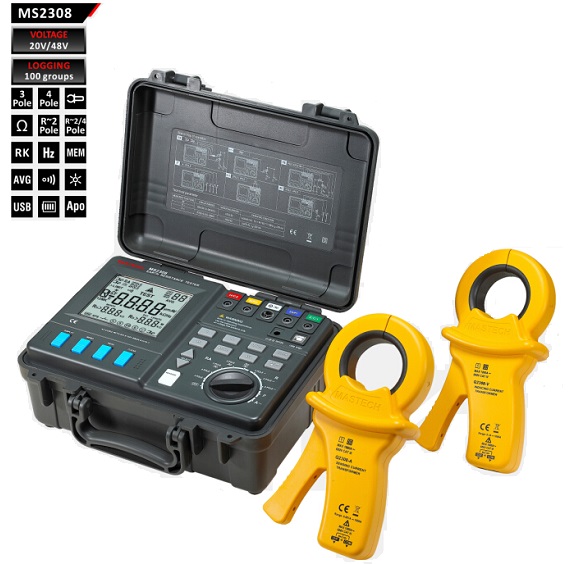

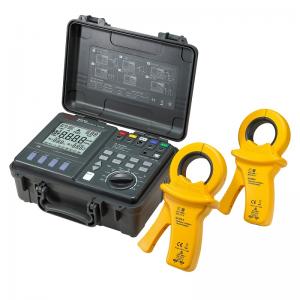

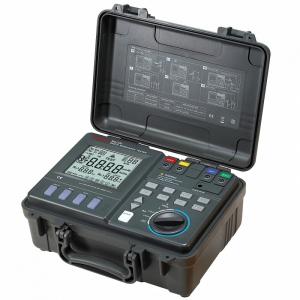

Advanced Earth Resistance Tester - MS2306/MS2307/MS2308

? Digital / Analog dual display 9999 counts
? Auto Power Off
? Clock
? AVG
? Compensation Resistance
? Alarming indicator for limit-value measurement
? Battery capacity indicator
? Display Backlight
? Setting length between resistivity testing point
? Data Storage 100 groups

Model Number: MS2306/MS2307/MS2308
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MS2306/MS2307/MS2307- Advanced Earth Resistance Tester

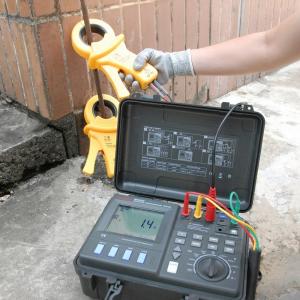

With the latest technology in a small-sized, robust and easy-to-use instrument, this series of earthing resistance tester is mainly used to test the earthing resistance of transformer, lightning-proof system, high-voltage power tower and telecommunication equipments, etc., providing a perfect solution for earthing-resistance test.

Advanced Earth Resistance Tester Features
? Digital / Analog dual display 9999 counts
? Auto Power Off
? Clock
? AVG
? Compensation Resistance
? Alarming indicator for limit-value measurement
? Battery capacity indicator
? Display Backlight
? Setting length between resistivity testing point
? Data Storage 100 groups
? USB 2.0 Interface (MS2307/MS2308)

Advanced Earth Resistance Tester General Specifications
? Power supply:
(a)6XLR14 alkaline(2#); rated voltage: 6x1.5V
(b)Recharge Battery: NI~MH Recharge Battery, 7.2V
(c)Charger: Input voltage: 100V~240V; Frequency: 50Hz~60Hz; Output Voltage: 12VDC 3A
? Product Size:284mmx230mmx125mm/11.2"x9.1"x4.9"
? Product Weight : 2.5kg/5.5lb
? Certificate: CE / ETL / RoHS

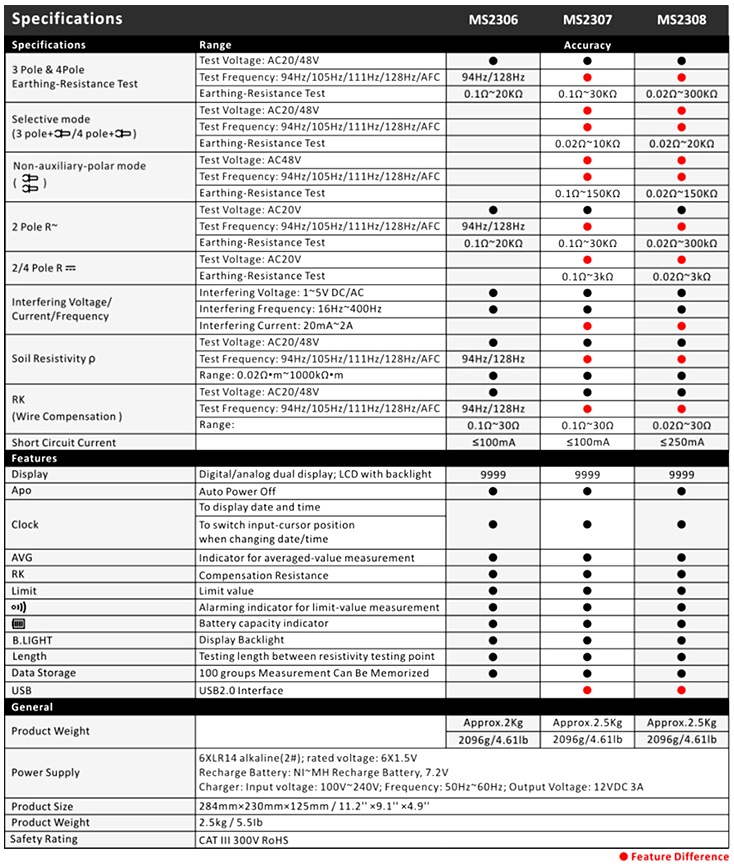

Advanced Earth Resistance Tester Specifications
