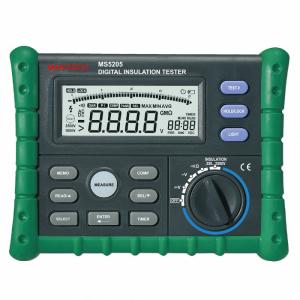

Digital Insulation Tester - MS5205

? Compare function
? Timer function
? Storage function
? Relative Measurement
? Data Hold
? Low Battery Display
? Power Supply: 8 x 1.5V AA Batteries
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 1000V / CAT IV 600V

  • Model Number: MS5205
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Digital Insulation Tester
Mouse over image to zoom
Share:

Product Specification

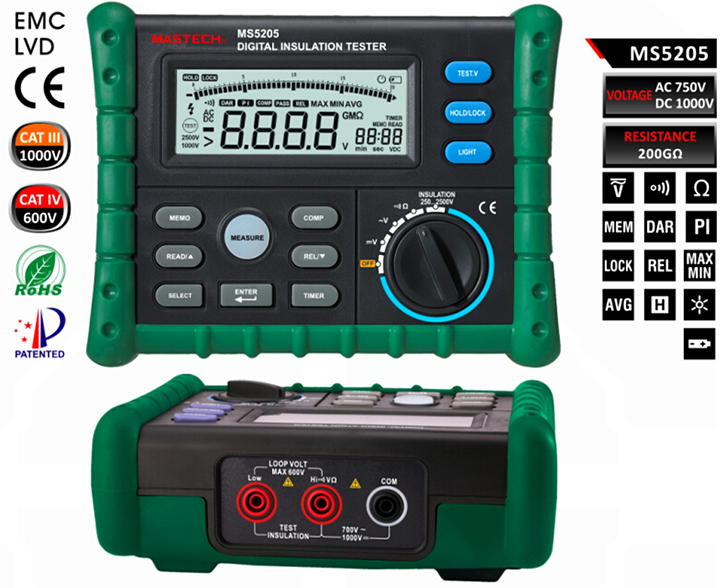

MS5205 - Digital Insulation Tester

The Tester for insulation resistance with test voltage up to 2500V, insulation resistance up to 100G ohm, Short current up to 3mA, continuity, and voltage test functions. The tester performs the automatic calculation of polarization index of dielectric PI and dielectric absorption ratio DAR.

MS5205 Digital Insulation Tester Features
? Auto Power Off
? LOCK
? MIN/MAX/AVG
? Compare function
? Timer function
? Storage function
? DAR
? PASS
? Backlight
? Relative Measurement
? Data Hold
? Low Battery Display

MS5205 Digital Insulation Tester General Specifications
? Power Supply: 8 x 1.5V AA Batteries
? Product Size: 180mm x 140mm x 65mm / 7.1" x 5.5" x 2.56"
? Product Weight: 900g/1.98lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 1000V / CAT IV 600V

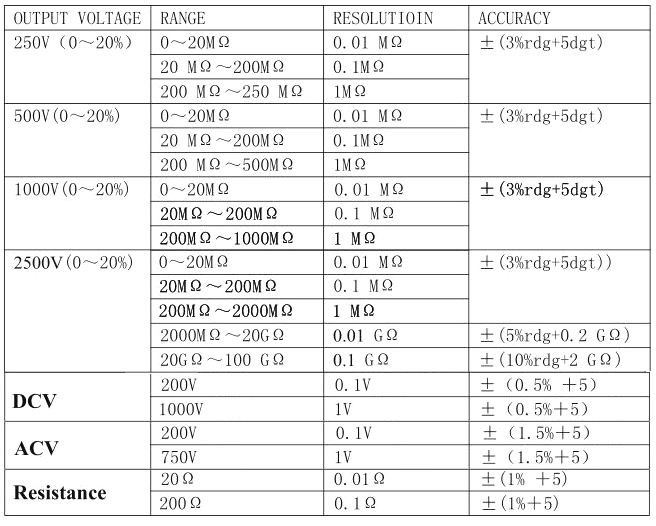

MS5205 Digital Insulation Tester Specifications
