High Voltage Insulation Tester - MS5202

Product Specification

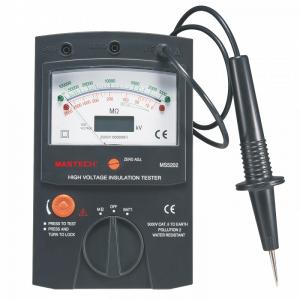

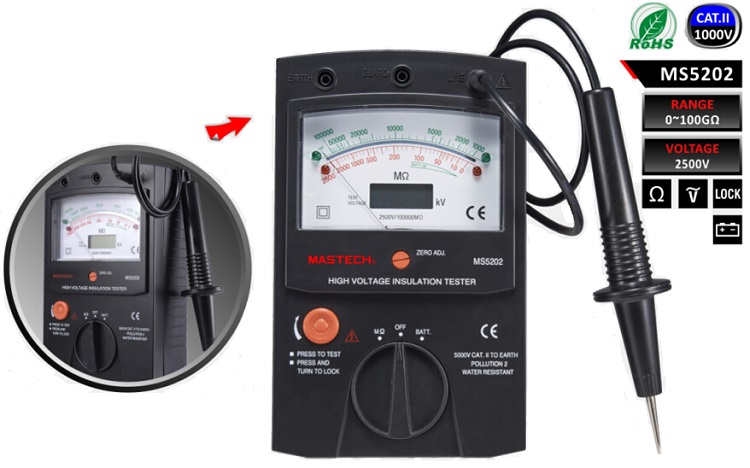

MS5202 - High Voltage Insulation Tester

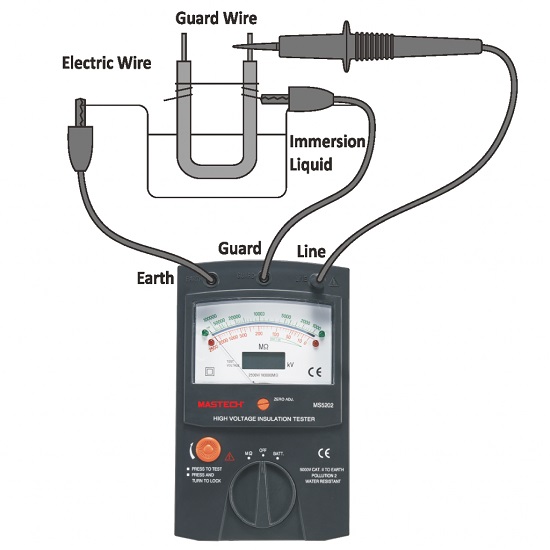

This meter is a portable professional measuring instrument, which can be used in the test of high voltage insulated for the maintenance and service of the industry equipment, such as the cables, transformers, generators, switch, etc.This meter has of auto range, the indicator with a dual scales point needle, In the measuring range between 0 to 100GΩ, the meter can auto-change the high or low range according to the value of the resistance. The flash of LED will indicate the user to get the reading from the scale line with the same color.

MS5202 High Voltage Insulation Tester Features
? Inner Battery Testing
? Low Battery Display
? Constant Measuring Lock

MS5202 High Voltage Insulation Tester General Specifications
? Power Supply: 8 x 1.5V AA Batteries / 1 x 9V 6F22 Battery
? Product Size: 225mm x 138mm x 81mm / 8.86" x 5.3" x 3.19"
? Product Weight: 1200g/2.75lb
? Certificate: RoHS
? Safety Rating: CAT II 1000V

MS5202 High Voltage Insulation Tester Electrical Specifications
Circumstance Temperature: 23±5°C
Relative Humidity: < 70%
