Cable Tracker - MS6812

? Sound and Light Instruction
? Cont and Tone LED Light
? Judge Continuity of the Cables or Wires
? Track the Cables or Wires, and Diagnose the Break Point
? Receive the Tone Signal on the Cables or Wires(Telephone Line)
? Power Supply: 2 x 9V 6F22 Batteries
? Receiver Weight: 71g/0.16 lb
? Emitter Weight: 87g/0.2 lb
? Certifiacte: CE / ETL / RoHS

Model Number: MS6812
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

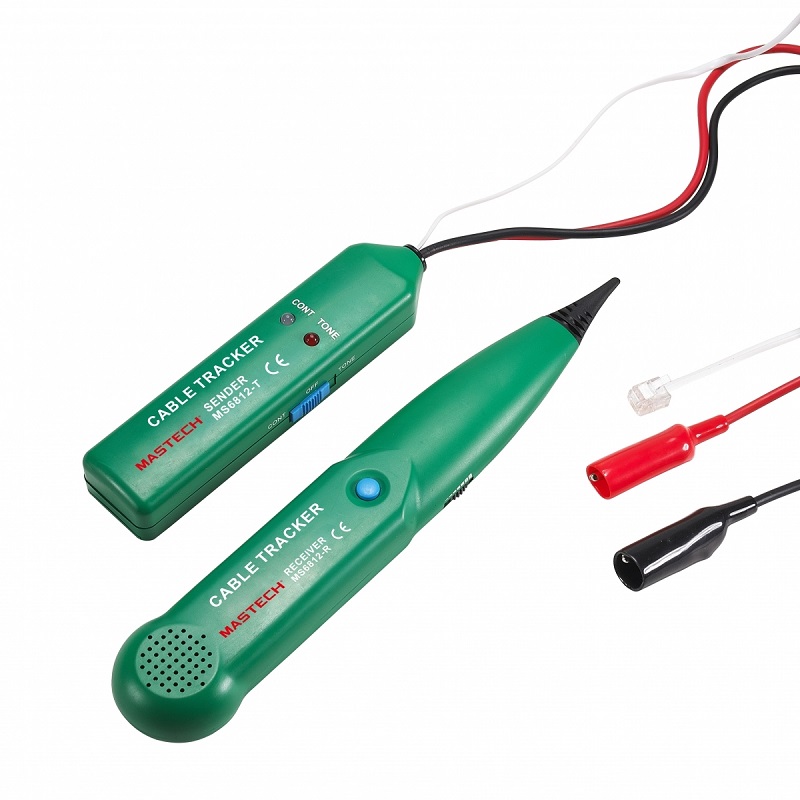

MS6812 Cable Tracker

The Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some state in the line, and more convenience to install, debug, maintain telephone line. There is a Sender(MS6812-T) and a Receiver(MS6812-R) included in The Cable Tracker.

MS6812 Cable Tracker Features
? Sound and Light Instruction
? Cont and Tone LED Light

MS6812 Cable Tracker Applications
- Judge Continuity of the Cables or Wires
- Track the Cables or Wires, and Diagnose the Break Point
- Receive the Tone Signal on the Cables or Wires(Telephone Line)
- Identify the State in the Working Telephone Line(Clear, Ringing, Busy)
- Send a Single Solid or a Dual Alternating Tone to the Target Cables or Wires

MS6812 Cable Tracker General Specifications
? Power Supply: 2 x 9V 6F22 Batteries
? Receiver Size: 238mm x 43mm x 26mm / 9.4" x 1.7" x 1.0"
? Emitter Size: 145mm x 35mm x 25mm / 5.7" x 1.38" x 0.98"
? Receiver Weight: 71g/0.16 lb
? Emitter Weight: 87g/0.2 lb
? Certifiacte: CE / ETL / RoHS
