Multi-Function Cable Tracker - MS6813

? Testing Coaxial Cable (BNC)
? Twisted-wire-pair cables (RJ45): 10Base-T, T568A, T568B, Token Ring
? Testing Cable's Shield Integrity
? Judge Continuity of the Cables or Wires
? Track the cables or wires, and diagnose the break Point
? Receive the tone signal on the cables or wires(telephone line)
? Power Supply: 2 x 9V 6F22
? Product Weight: 330g/0.72 lb
? Certificate: CE / ETL / RoHS

Model Number: MS6813
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

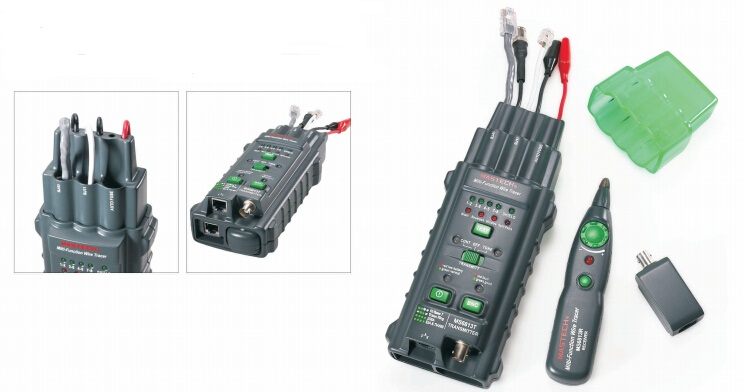

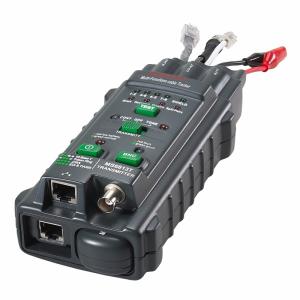

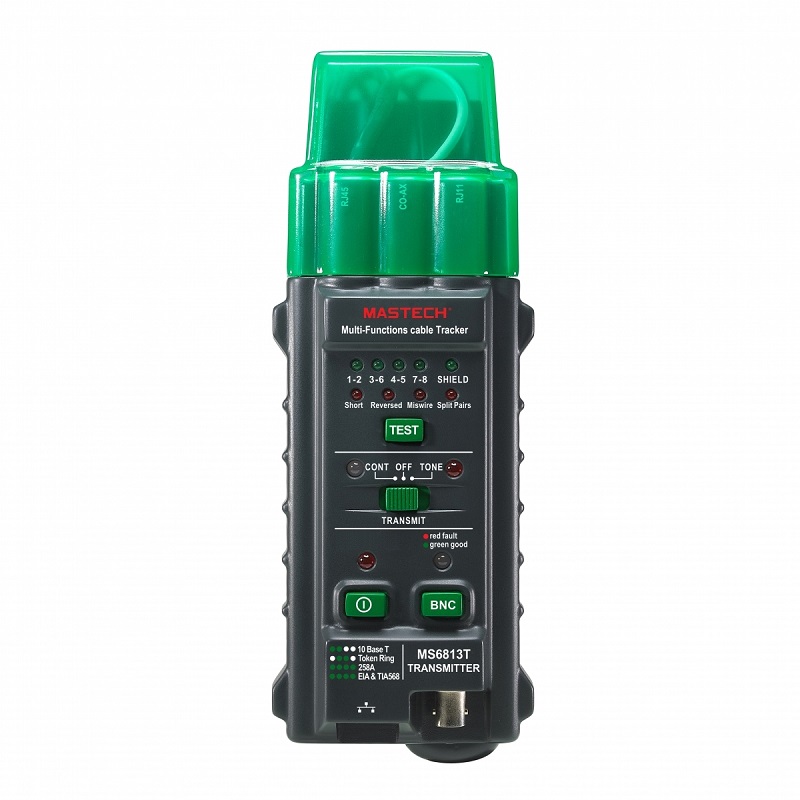

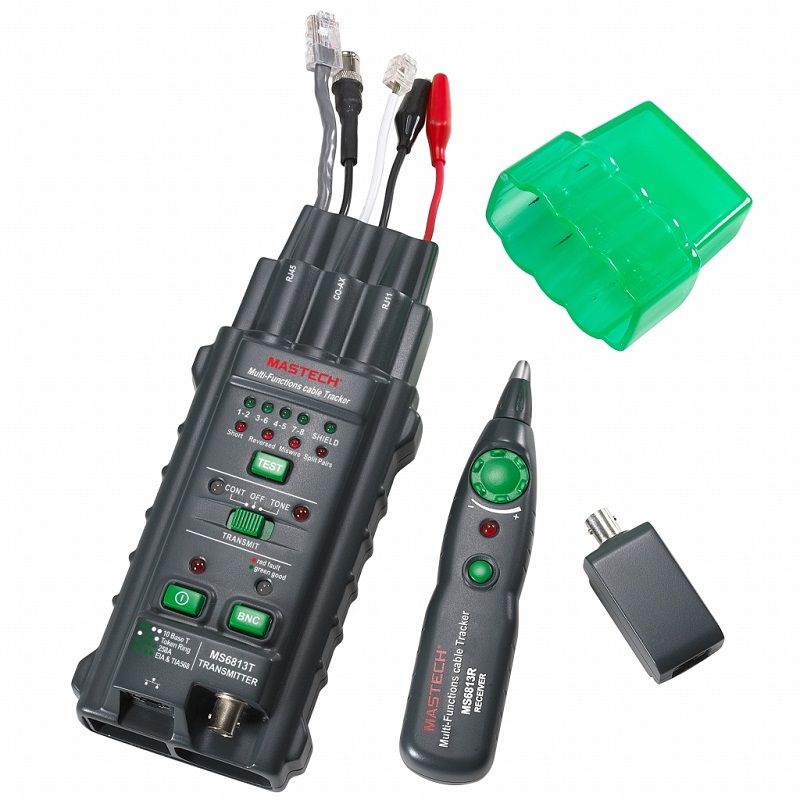

MS6813 Multi-Function Cable Tracker

MS6813 is s held network cable tester, ideal for Coaxial Cable (BNC), UTP and STP Cable installation, measurement, maintenance or inspection. it also offers a fast and convenient way of testing telephone line modes greatly simplifies telephone line installation and maintenance.

MS6813 Multi-Function Cable Tracker Application and Features
? Testing Coaxial Cable (BNC)
? Twisted-wire-pair cables (RJ45): 10Base-T, T568A, T568B, Token Ring
? Testing Cable's Shield Integrity
? Judge Continuity of the Cables or Wires
? Track the cables or wires, and diagnose the break Point
? Receive the tone signal on the cables or wires(telephone line)
? Identify the state in the working telephone line(clear, ringing, busy)
? Send a Single Solid or a Dual Alternating Tone to the Target Cables or Wires

MS6813 Multi-Function Cable Tracker General Specifications
? Power Supply: 2 x 9V 6F22
? Product Size: 206mm x 84mm x 55mm / 8.1" x 3.3" x 2.1"
? Product Weight: 330g/0.72 lb
? Certificate: CE / ETL / RoHS
