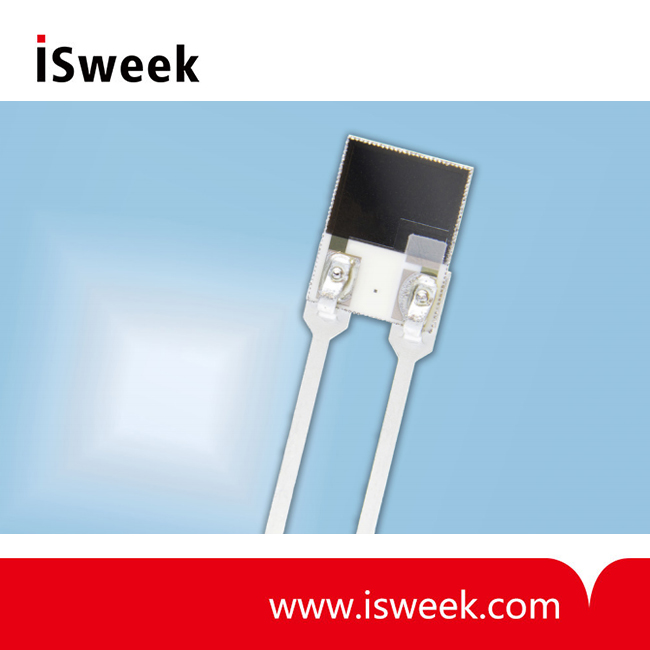

Capacitive Humidity Sensor - K5-W

? ?Fast recovery time
? ?Very stable at low humidity
? ?Condensation resistant
? ?High chemical resistance
? ?Very low drift
? ?Wide temperature range

  • Model Number: K5-W
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Capacitive Humidity Sensor
Mouse over image to zoom
Share:

Product Specification

Further advantages of the K5-W capacitive RH sensors include:

? Fast recovery time

? Very stable at low humidity

? Condensation resistant

? High chemical resistance

? Very low drift

? Wide temperature range

? Customer-specific sensor available upon request

 The IST AG K5-W humidity sensor is available with CuP-SIL wire post-plated with Sn as standard configuration.

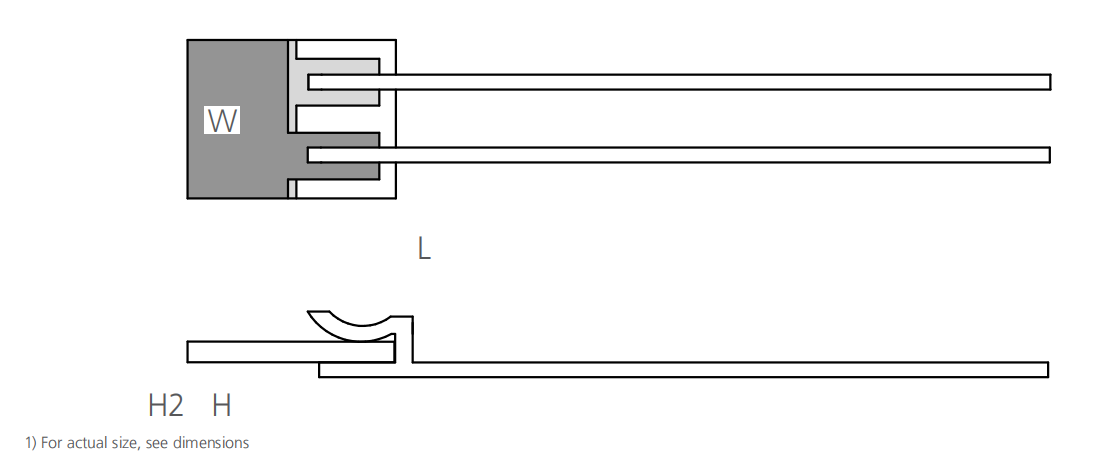

Illustration1)：





Technical Data:

Dimensions (L x W x H / H2 in mm)

5.0 x 3.81 x 0.4 / 1.2

Operating humidity range

0 % RH to 100 % RH

Operating temperature range

-40℃ to +150℃

Capacitance (C30)*

200 pF ±50 pF (at 30 % RH and +23℃)

Sensitivity (at C30 = 200 pF)

0.4 pF/% RH (15 % RH to 90 % RH)

Loss factor

< 0.01 (at 23℃, at 10 kHz, at 90 % RH)

Linearity error

< 1.5 % RH (15 % RH to 90 % RH at +23℃ after one point calibration)

Hysteresis

< 1.5 % RH

Response time t63

< 5 s (50 % RH to 0 % RH at +23℃)

Temperature dependence (typical)

? % RH = (B1 x % RH + B2) x T [℃] + (B3 x % RH + B4)

B1 = 0.00004 [1/℃]     B2 = 0.1842 [% RH/℃]

B3 = -0.0010           B4 = -4.2370 [% RH]

Measurement frequency

1 kHz to 100 kHz (recommended 10 kHz)

Maximal supply voltage

< 12 Vpp AC

Signal form

alternating signal without DC bias

Connection*

CuP-SIL wire post-plated with Sn, 10 mm

 * Customer-specific alternatives available

The calibration of the sensor must be done 5 days after soldering at the earliest.
