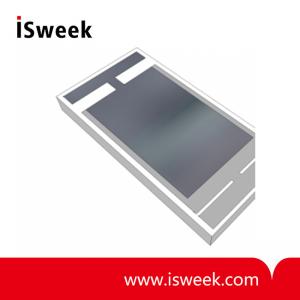

Capacitive Humidity Sensor - P14 FemtoCap

? ?High chemical resistance
? ?Very low drift
? ?Wide temperature range
? ?Excellent price-performance ratio
? ?Resistance to condensation
? ?Solderable and bondable (fully automated assembly)

  • Model Number: P14 FemtoCap
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Capacitive Humidity Sensor
Mouse over image to zoom
Share:

Product Specification

Further advantages of the P14 FemtoCap capacitive RH sensor include:

? High chemical resistance

? Very low drift

? Wide temperature range

? Excellent price-performance ratio

? Resistance to condensation

? Solderable and bondable (fully automated assembly)

? Fast recovery time

? Customer-specific sensor available upon request

 The IST AG P14 FemtoCap humidity sensor is available as SMD for automatic packaging as standard configuration.



Technical Data:

Dimensions (L x W x H in mm)

4 x 2 x 0.4

Operating humidity range

0 % RH to 100 % RH (maximal dew point +85℃)

Operating temperature range

-50℃ to +150℃

Capacitance (C30)*

180 pF ±50 pF (at 30 % RH and +23℃)

Sensitivity (at C30 = 180 pF)

0.3 pF/% RH (15 % RH to 90 % RH)

Loss factor

< 0.01 (at 23℃, at 10 kHz, at 90 % RH)

Linearity error

< 1.5 % RH (15 % RH to 90 % RH at +23℃ after one point calibration)

Hysteresis

< 1.5 % RH

Response time t63

< 3 s (50 % RH to 0 % RH at +23℃)

Temperature dependence (typical)

? % RH = (B1 x % RH + B2) x T [℃] + (B3 x % RH + B4)

B1 = 0.0014 [1/℃]        B2 = 0.1325 [% RH/℃]

B3 = -0.0317             B4 = -3.0876 [% RH]

Measurement frequency

1 kHz to 100 kHz (recommended 10 kHz)

Maximal supply voltage

< 12 Vpp AC

Signal form

alternating signal without DC bias

Connections

SMD, automatic assembly compatible

 * Customer-specific alternatives available
