Carbon Dioxide (CO2) Sensor Module Evaluation Module For CDM7162 - EM7162

EM7162 - Evaluation Module for CDM7162
Serial data output, PWM output, and voltage output of measurement data from CDM7162 sensor module
Stores measurement data in PC using PC application software
Displays measurement data on a PC monitor
Controls CDM7162 operations using PC software

Model Number: EM7162

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Carbon Dioxide (CO2) Sensor Module Evaluation Module For CDM7162 EM7162：

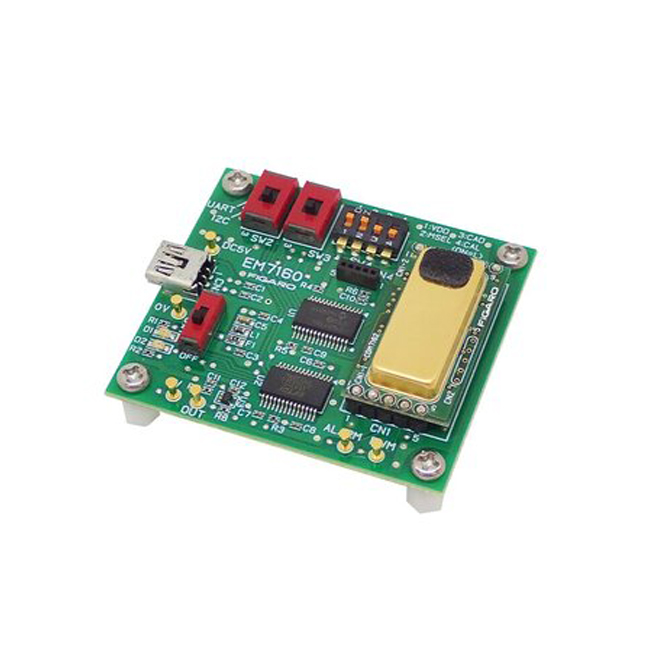

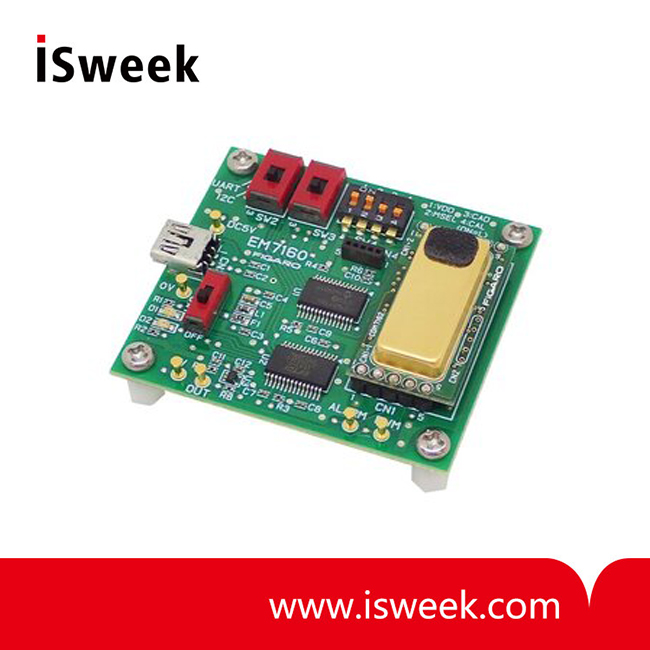

The EM7162 evaluation module is designed to facilitate evaluation of the characteristics of the CDM7162 carbon dioxide (CO2) sensor module.

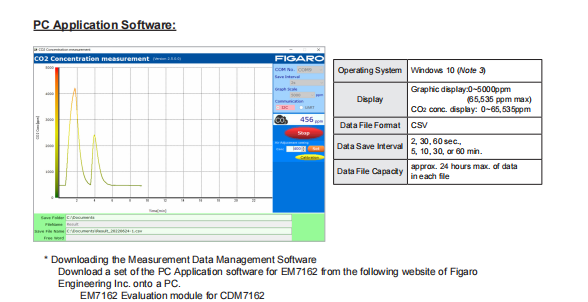

This evaluation module provides CO2 measurement data output in serial data format via a USB connector, PMW output, and continuous voltage output which is converted from the PWM output signal, simplifying testing of the CDM7162. With PC application software included in the package, serial measurement data from the EM7162 can be transferred to an external PC for graphically displaying real-time measurement data on a PC monitor. Measurement data are stored in CSV format in the PC and can be imported into other software such as Microsoft Excel (Note 3).

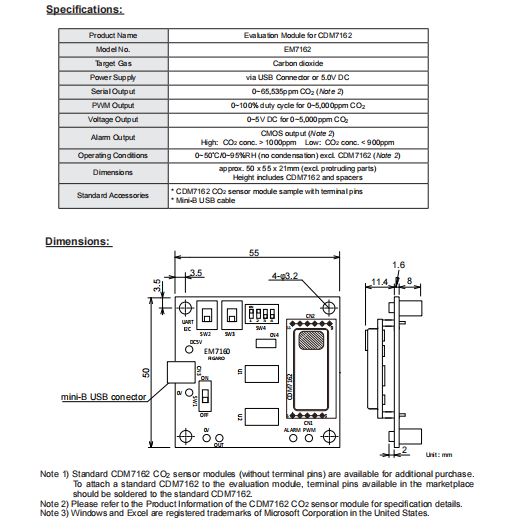

The evaluation module comes with a sample CDM7162 sensor module which is user-replaceable, as it is inserted into pin sockets with terminal pins (Note 1).

Carbon Dioxide (CO2) Sensor Module Evaluation Module For CDM7162 EM7162 Features:

EM7162 - Evaluation Module for CDM7162

Serial data output, PWM output, and voltage output of measurement data from CDM7162 sensor module

Stores measurement data in PC using PC application software

Displays measurement data on a PC monitor

Controls CDM7162 operations using PC software
