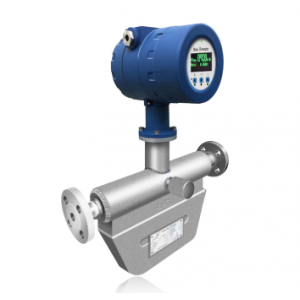

Coriolis Mass Flow Meter - FCM06

Product Specification

FCM06 Coriolis Mass  Flow Meter Principle ：

Coriolis Mass Flow Meter uses two parallel arranged pipes which are rotated at their resonant frequency by coils. Any mass flow passing through the tubes will generate Coriolis forces which appear whenever a mass moves radially in a rotating system. The forces have opposed effects on the inlet and outlet sides, they slightly deform the pipes. The excursion of the pipes is detected by sensors on the inlet and outlet side. The phase shift between the rotational frequencies of both pipes are proportional to the mass flow rate. The resonant frequency of both pipes changes in accordance with the density of the medium. This effect determines the density. Using one sensor density and temperature can also be measured. The extent of deformation of the pipes depends on temperature. Therefore the temperature is measured for compensation purposes.

Introduction

DSP transmitter with superior accuracy 0.1%

20:1 turndown ratio

5 to 8 calibration points

Mass flow, density, temperature and volume flow can be measured at the same time Improved startup and availability with simple commissioning and reduced risk

No moving parts result in no maintenance Install anywhere with no flow conditioning or straight pipe required Flow

The FCM06 Coriolis mass flow meter is a major advance in massflow measurement. The ability to measure mass flow and density directly has led to their use in applications ranging from metering food products to corrosive chemicals, CNG and LNG.

FCM06 Coriolis Mass  Flow Meter Applications :

Batch Control / Blending

Process Control / Filling & Dosing

Loading and Unloading

Custody transfer

Process gas measurement
