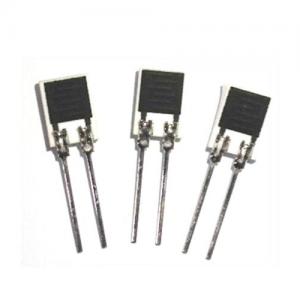

Dew Sensor for Detect Dew Condensation - SY-DS-1L
? Rated Voltage: DC AC 0.8V max
? Operating temperature: 0 ~ ±60°C
? Operating humidity: 0~100%RH
? Storage Condition range: -20 ~ 85°C
? Small and light
? High response and reliable
? Dew detection high sensitivity and accuracy
- Model Number: SY-DS-1L
- Data Sheet:
- Quantity:
- - +
Product Specification
SY-DS-1L Dew Sensor Description
Dew sensors SY-DS series are capable of detecting and/or forecasting dew condensation by the change of resistance of the sensor.
SY-DS-1L Dew Sensor Features
? Small, Light
? High sensitivity under high-humidity condition
? Switching function
? Quick response
? High reliability and stability
SY-DS-1L Dew Sensor Applications
? Electron
? Pharmaceutical industry
? Food processing
? Warehouses
? Tobacco
? Textil
? Weather
SY-DS-1L Dew Sensor Electrical Characteristics
|
Rated Voltage |
DC AC 0.8V max |
|
Operating temperature range |
0 ~ ±60°C |
|
Operating humidity range |
0 ~ 100%RH |
|
Storage Condition range |
-20 ~ 85°C |
|
Standard characteristic |
a) 10 ? Max. at 80%RH |
|
b) 100 ? Max. at 94%RH |
|
|
C) 200 ? Max. at 98%RH |
SY-DS-1L Dew Sensor Outline Drawing Dimensions
