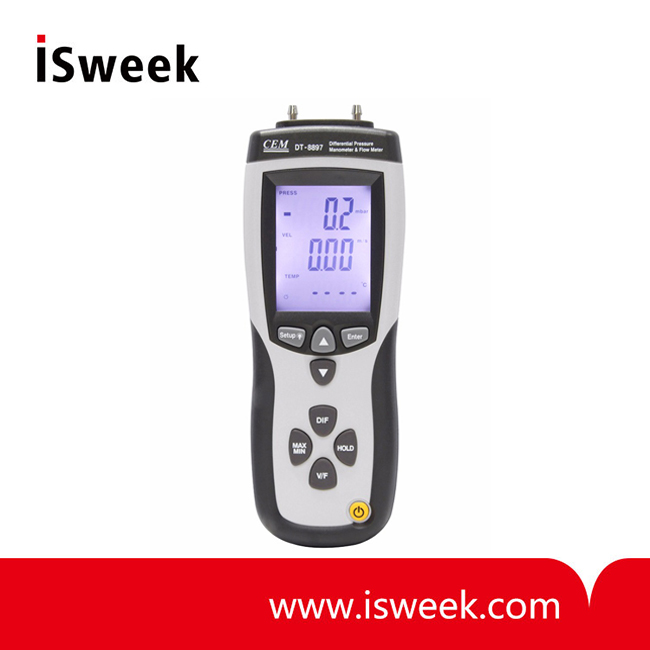

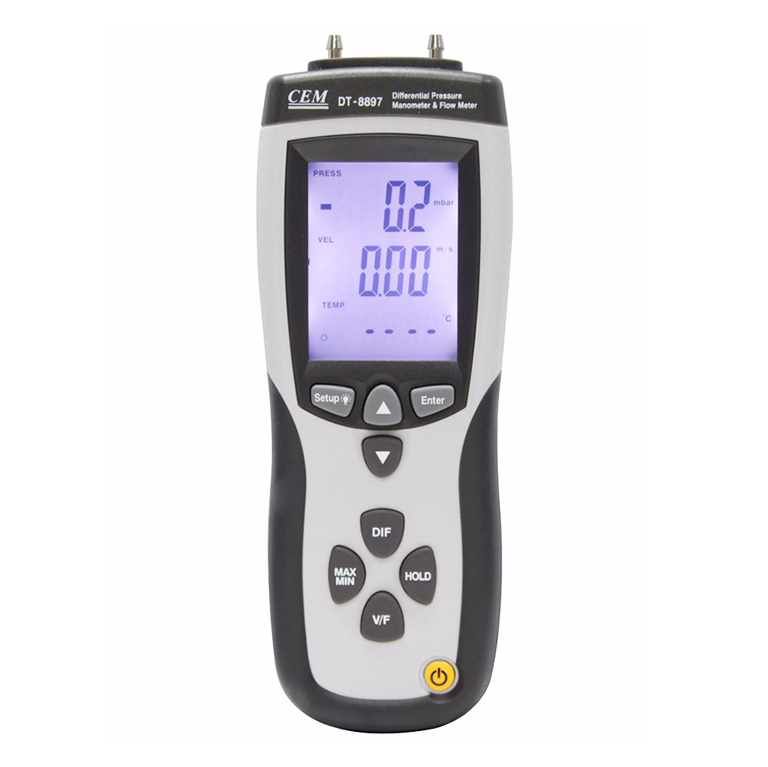

Differential Pressure Manometer & Flow Meter - DT-8897/8897H

? Measures Gauge/Differential Pressure , Air Velocity, Air Flow and temperature.
? Large LCD display with backlight.
? Accuracy: ±0.3%FSO
? Repeatability: ±0.2% (Max.+/ -0.5% FSO)
? Linearity/Hysteresis: ±0.29% FSO
? Pressure Range: ±2psi (±55.40 inH2O)
? Size: 210mm x 75mm x 50mm
? Weight: 280g

Model Number: DT-8897/8897H

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DT-8897/8897H Differential Pressure Manometer & Flow Meter
? DT-8897/8897H measures Gauge/Differential Pressure, Air Velocity, Air Flow and temperature.
? Hot wire anemometer(8897H) .
? Large LCD display with backlight.
? Relative time clock on MAX MIN and AVG provides a time reference for measurement.
? Pressure measurement provides Zero Adjust and DIF function.
? Display Pressure, Air Velocity or Air Flow plus Temperature simultaneously.
? Easy to set Area dimension (up to 8 point).
? USB interface, USB to UART Bridge Controller.
? Low battery indication, and Auto Power Off mode (Sleep mode) increases battery life.

DT-8897/8897H Differential Pressure Manometer Specifications

Accuracy	±0.3%FSO
Repeatability	±0.2% (Max.+/ -0.5% FSO)
Linearity/Hysteresis	±0.29% FSO
Pressure Range	±2psi (±55.40 inH2O)
	Units	Range/Resolution
Units and Resolution	psi	2.000/0.001
	mbar	137.8/0.1
	kPa	13.78/0.01
	inHg	4.072/0.001
	mmHg	103.4/0.1

Size(HxWxD): 210mm x 75mm x 50mm
Weight: 280g

DT-8897/8897H Flow Meter Specifications

Air Velocity	Range	Resolution	Basic Accuracy	8897	8897H
m/s(meter per second)	0.40~30.00	0.01	±3% ± 0.20m/s	*
m/s(meter per second)	0.1~25.0	0.01	±5% ± 1m/s		*
ft/min(feet per minute)	80~5900	1	±3% ± 40ft/min	*
ft/min(feet per minute)	20~4925	1	±5% ± 1ft/min		*
km/h(kilometers per hour)	1.4~108.0	0.1	±3% ± 0.8km/h	*
km/h(kilometers per hour)	0.3~90.0	0.1	±5% ± 1km/h		*
MPH(miles per hour)	0.9~67.0	0.1	±3% ± 0.4MPH	*
MPH(miles per hour)	0.2~55.8	0.1	±5% ±1 MPH		*
Knots(nautical miles per hour)	0.8~58.0	0.1	±3% ± 0.4knots	*
Knots(nautical miles per hour)	0.2~48.5	0.1	±5% ± 1knots		*
Temperature °C	0 to 50.0°C	0.1	±1.0°C	*	*
Temperature °F	32.0 to 120.0°F	0.1	±2.0°F	*	*
Air Flow	Range	Resolution	Area	*	*
CFM (CFM=ft³/min)	0-999,900ft³/min	0.001~100	0-999.9 ft²	*	*
CMM (CMM=m³/min)	0-999,900m³/min	0.001~100	0-999.9 m²	*	*
