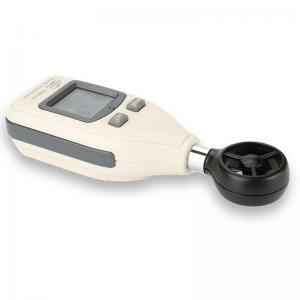

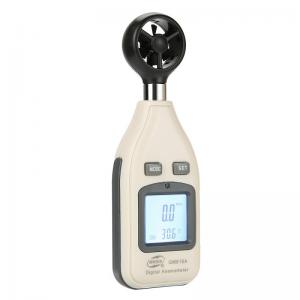

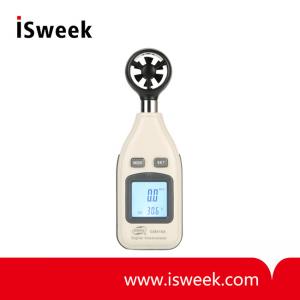

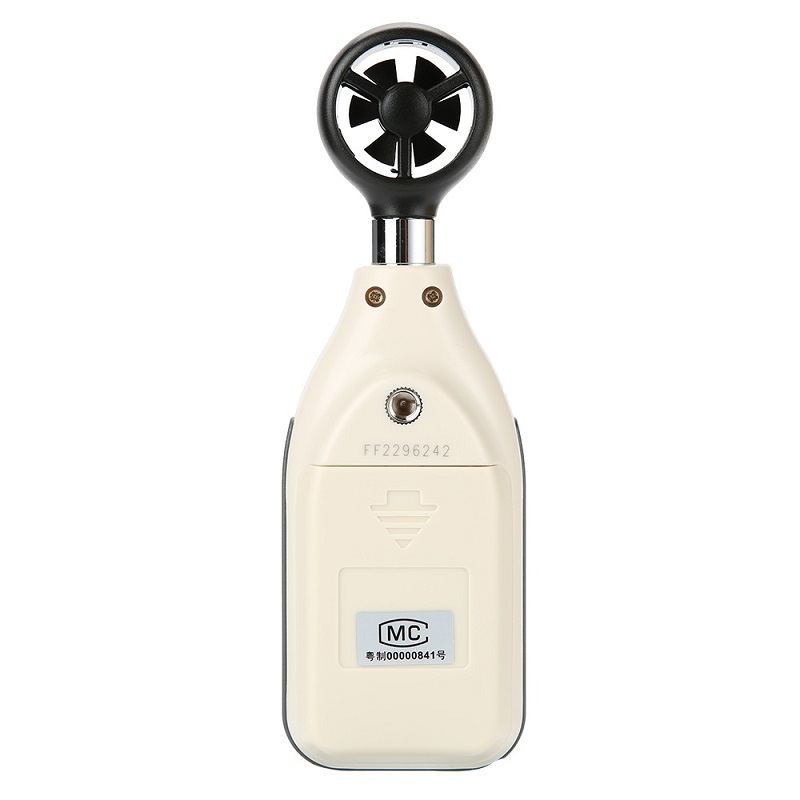

Digital Anemometer - GM816A
? Measurement items: Air velocity, Air temperature
? Measurement range:
Air velocity: 0~30m/s;
Air temperature: -10~45°C, 14~113°F
? Resolution: 0.2°C, 0.1m/s
? Battery: ?6F22 9V (Included)?
? Thermometer: NTC thermometer?
? ?Operating temperature: -10℃~+45℃(1 4°F~113°F)?
?? Operating humidity: Less than 90%RH?
- Model Number: GM816A
- Data Sheet:
- Quantity:
- - +
Product Specification
GM816A Digital Anemometer FUNCTION
? Air Velocity & Temperature Measurement；
? Max/Average/Current air velocity measurement;
? ℃/℉ Temperature unit selection;
? Five units of air velocity: M/s, Km/h, ft/min, Knots, mph
? Beaufort scale;
? Backlight display;
? Manual/Auto power shut off;
? Wind chill indication;
? Low battery indication.
GM816A Digital Anemometer Specification
|
Air velocity |
||||
|
Unit |
Range |
Resolution |
Threshold |
Accuracy |
|
M/s |
0~30 |
0.1 | 0.1 |
±5% |
|
Ft/min |
0~5860 |
19 | 39 | |
|
Knots |
0~55 |
0.2 |
0.1 |
|
|
Km/hr |
0~90 |
0.3 | 0.3 | |
|
Mph |
0~65 |
0.2 | 0.2 | |
|
Temperature |
|||
|
Unit |
Range |
Resolution |
Accuracy |
|
°C |
-10℃~+45℃ |
0.2 |
±2°C |
|
°F |
14°F~113°F |
0.36 |
±3.6°F |
|
Battery |
6F22 9V (Included) |
||
|
Thermometer |
NTC thermometer |
||
|
Operating temperature |
-10℃~+45℃(1 4°F~113°F) |
||
|
Operating humidity |
Less than 90%RH |
||
|
Store temperature |
-40℃~+60℃(-40°F~140°F) |
||
|
Current consumption |
Approx. 3mA |
||
|
Weight |
58.9g (Including battery) |
||
|
Dimension |
160x52.5x35.5 mm |
||
