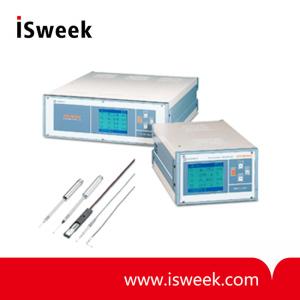

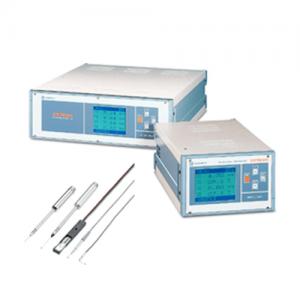

Multi-Channel Anemomaster Anemometer - 1550/1560 Series

? Resolution?: 0.01 m/s?
? Resolution?: 0.1°C?
? Resolution?: 0.1% RH?
? Interface?:
RS232C for PC Connection & Cascade Option?
?Centronics for Printer Output?
? Analog Output: 0 to 5V Option with D/A Module
? Power Supply: AC Adapter

Model Number: 1550/1560 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Multi-Channel Anemometer
1550/1560 Series

1550/1560 Anemometer is a research-grade instrument designed for high performance precise measurements.

When coupled with our highly accurate probes this multi-channel anemometer deliver a scaleable system.

The Kanomax 1550 & 1560 house modules bays for the connection of up to 24 channels (model 1560) or 64 channels (model 1550) of simultaneous air velocity measurements.

Each bay accepts one of five unique modules allowing for a wide variety of custom configurations for air velocity, temperature, and humidity measurement.

Multiple probes ( Air Velocity, Temperature & Humidity ) are available
For a larger system, you can connect up to 5 units in a cascade for up to 320 air velocity channels and transfer the data to your company computer.

Both units feature a bright LCD display that reveals the data from each channel.

Burst mode allows you to output the data of all channels at high speed and and decide which probe to query and send data from.

1550/1560 Series Multi-Channel Anemometer Features & Benefits
? Flexibility in system configuration means greater freedom, simplicity, and efficiency
? One unit of model 1550 holds up to 64 channels
? Over 13 compatible probes in a variety of shapes and configurations
? Combine modules as needed to design the perfect customized multi-channel system for your specific application
? Expandable system: more modules can be added as needed

1550/1560 Series Multi-Channel Anemometer Applications
? Evaluate cooling efficiency in the electronic device
? Aerodynamics Research
? Production Control
? Product Development

1550/1560 Series Multi-Channel Anemometer Main Unit Specifications

Model	1550	1560
Air Velocity Ranges	Varies by probe, see below for probe specifications
Resolution	0.01 m/s
Temperature Ranges	Varies by probe, see below for probe specifications
Resolution	0.1°C
Relative Humidity Ranges	Varies by probe, see below for probe specifications
Resolution	0.1% RH
Interface	RS232C for PC Connection & Cascade Option
	Centronics for Printer Output
Analog Output	0 to 5V *Option with D/A Module
Power Supply	AC Adapter
Dimensions	19.6" x 5.5" x 16.9"	8.9" x 5.5" x 12.8"
Weight	22 lbs (10 kg)	11 lbs (5 kg)

1550/1560 Series Multi-Channel Anemometer Probe Specifications

Model	Probe Type	Velocity Range	Temp. Range	RH Range	Primary Feature
0962-00	Uni-Directional	20-9840 fpm (0.10-50.0 m/s)	n/a	n/a	tip is designed so it can easily be mounted in place
0963-00	Uni-Directional	20-9840 fpm (0.10-50.0 m/s)	n/a	n/a	basic probe
0965-00	Omni-Directional	20-4920 fpm (0.10-25.0 m/s	n/a	n/a	spherical-tip probe with horn
0965-01	Omni-Directional	20-4920 fpm (0.10-25.0 m/s	n/a	n/a	spherical-tip probe (no horn)
0965-03	Omni-Directional	20-4920 fpm (0.10-25.0 m/s	n/a	n/a	miniature i-shaped probe
0965-04	Omni-Directional	20-4920 fpm (0.10-25.0 m/s	n/a	n/a	miniature L-shaped probe
0965-07	Omni-Directional	20-4920 fpm (0.10-25.0 m/s	n/a	n/a	miniature i-shaped probe, with independent temperature compensation
0965-08	Omni-Directional	20-4920 fpm (0.10-25.0 m/s	n/a	n/a	miniature L-shaped probe, with independent temperature compensation
0965-09	Omni-Directional	20-9840 fpm (0.10-50.0 m/s)	n/a	n/a	spherical-tip probe, 80mm long
0965-10	Omni-Directional	20-9840 fpm (0.10-50.0 m/s)	n/a	n/a	spherical-tip probe, 400 mm long
0962-21	Uni-Directional	20-9840 fpm (0.10-50.0 m/s)	32-212°F (0-100°C)	n/a	tip is designed so it can easily be mounted in place, with temp. sensor
0963-21	Uni-Directional	20-9840 fpm (0.10-50.0 m/s)	32-212°F (0-100°C)	n/a	basic probe with temp. sensor
0965-21	Omni-Directiona	20-9840 fpm (0.10-50.0 m/s)	32-212°F (0-100°C)	n/a	spherical-tip probe with temp. sensor
0963-31	Uni-Directional	20-9840 fpm (0.10-50.0 m/s)	32-212°F (0-100°C)	5.0-95.0%	basic probe with temp. & RH sensors
0965-31	Omni-Directiona	20-9840 fpm (0.10-50.0 m/s)	32-212°F (0-100°C)	5.0-95.0%	spherical-tip probe with temp. & RH sensor
