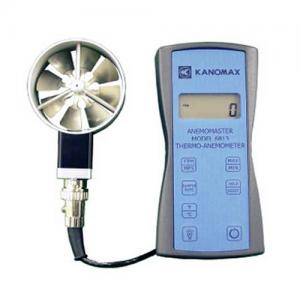

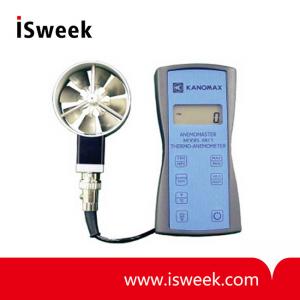

Digital Vane Anemometer - 6812

? Air Velocity Ranges:
Probe AP275: 50 to 7800 ft/min/0.2 to 40.00 m/sec
Probe AP100: 300 to 6890 ft/min (1.5 to 35.00 m/sec)
? Operating Temperature
Instrument: 32 to 125°F (0 to 50°C
Probe: -4 to 212°F (-20 to 100°C)
? Power Supply: 3 AA alkaline batteries
? Display: 0.5" LCD, 4 digits, with LED backlight

Model Number: 6812
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Model 6812
Volume Flow Anemometer

Model 6812 digital anemometer is a versatile instrument for measuring air velocity in various applications such as HVAC, aerospace development, industrial process airflow, and fluids research.

Air Volume flow is automatically calculated in units of either cubic feet per minute (ft3/min) or cubic meters per hour (m3/hr).

The rugged yet precise probes can be used for airstreams that have a wide range of humidity, temperature and contaminants without compromising accuracy.

Features include choice of probe diameters, custom cable lengths, service temperatures up to 212°F (100°C) at the probe, high reliability, and long life.

6812 Digital Vane Anemometer Applications
? HVAC Ventilation and Balancing
? Laboratory Control
? IAQ Investigation
? Industrial Hygiene Quality Control

6812 Digital Vane Anemometer Specifications

Air Velocity	Probe AP275	50 to 7800 ft/min (feet per minute) 0.2 to 40.00 m/sec (meters per second)
	Probe AP100	300 to 6890 ft/min (1.5 to 35.00 m/sec)
	Accuracy	AP275: ±1.0% of reading ±1 digit AP100: ±0.50 % full scale ±0.75% of reading ±1 digit
	Resolution	1 ft/min or 0.01 m/sec 0.1 ft 3 /min or 0.1 m 3 /hr
Calculated Air Volume Flow		0.0 to 9999 ft 3 /min (cubic feet per minute) 0.0 to 9999 m 3 /hr (cubic meters per hour)
Operating Temperature		Instrument: 32 to 125°F (0 to 50°C) Probe: -4 to 212°F (-20 to 100°C)
Power Supply		3 AA alkaline batteries
Battery Life		Approx. 150 hours, without backlight
Battery check		Automatic low battery display
Display		0.5" LCD, 4 digits, with LED backlight
