Multi-function Hot-wire Anemometer with Detachable Compatible Probes - 6501 Series

? Air Velocity Range: 2 to 9840 FPM (0.01 to 50.0 m/s)
? Temperature Range: -4 to 158°F (-20 to 70°C)
? Humidity Range: 2.0 to 98.0 %RH
? Pressure Range(Option): -5.00 to +5.00 kPa
? Data Storage Capacity: Up to 20,000 records
? Power Supply: 6 x AA batteries or AC Adapter

Model Number: 6501 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Climomaster?
Model 6501 Series

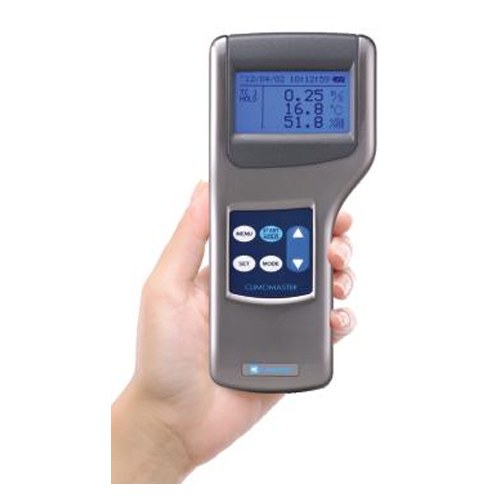

Multi-function Hot-wire Anemometer with Detachable Compatible Probes
Kanomax Climomaster? is the most accurate hot-wire anemometer of its kind. It offers research-grade accuracy at an affordable, industry competitive price. Kanomax ensures the high accuracy of this anemometer with a special platinum-coated sensor that improves stability and durability, and a production facility that uses multiple types of wind tunnels. This combination guarantees the accuracy and reliability of our products. A high degree of accuracy is essential for applications such as cleanroom certifications, laminar flow measurements, and R&D product development.

Climomaster? 6501 Series Hot-wire Anemometer Applications
? HVAC Testing
? IAQ Investigations
? Critical Environment Certification
? HEPA Filter Performance Testing
? Turbulent Air Testing
? Manufacturing Process Control

Climomaster? 6501 Series Hot-wire Anemometer Features
? 2% air velocity accuracy: highest accuracy on the market
? Now equipped with an automatic atmospheric pressure compensation function for precise airflow measurement
? Wide range of probe choices for challenging applications
? Sleek, ergonomical design with an anti-slip grip and highly visible backlit display
? Research quality at a contractor-friendly price
? Extended 2 year warranty
? Generous datalogging capacity (up to 20000 records) and USB interface make it easy to upload to your PC or laptop
? Optional Windows 7 compatible software provides real-time graphical display of date for field analysis
? Now tracks its own calibration cycle. It will now remind you when it is due for calibration
? Optional hands-free carrying case is available
? Includes 79 in. (2m) probe cable, USB cable, 6 pcs. AA batteries, carrying case, operation manual

Climomaster? Specifications

Air Velocity	Range	2 to 9840 FPM (0.01 to 50.0 m/s) *Varies by probe
	Accuracy	+/- 2% of reading or 0.015 m/s whichever is greater
	Resolution	0.01 m/s (0.01 to 9.99 m/s), 0.1 m/s (10.0 to 50.0 m/s)
Temperature	Range	-4 to 158°F (-20 to 70°C)
	Accuracy	+/- 1.0°F (0.5°C)
	Resolution	1.0°F (0.1°C)
Humidity	Range	2.0 to 98.0 %RH *Varies by probe
	Accuracy	+/- 2.0 %RH
	Resolution	0.1 %RH
Pressure (Option)	Range	-5.00 to +5.00 kPa
	Accuracy	+/- (3% of reading + 0.01) kPa
	Resolution	0.01 kPa
Interface	Digital	USB and RS232C (for print-out)
Interface	Analog (Option)	DC 0 to 1 V (select one from Air Velocity, Temp, Humidity and Pressure)
Data Storage Capacity		Up to 20,000 records
Power Supply		6 x AA batteries or AC Adapter
Operation Range	Main Unit	41 to 104°F (5 to 40°C) with no visible condensation
	Probe	-4 to 158°C (-20 to 70°C) with no visible condensation
	Storage	14 to 122°C (-10 to 50°C) with no visible condensation
Weight		0.9 lbs (400 g)
Dimensions		Main Body: 3.4 x 7.4 x 1.6 inches (88 x 188 x 41 mm)
Warranty		2 years

Climomaster? Probe Specifications


Model	6531-2G	6541-2G	6561-2G	6542-2G	6533-2G	6543-2G	6551-2G	6552-2G
Probe Type	Uni-Directional	Uni-Directional	Uni-Directional	Uni-Directional	Uni-Directional	Uni-Directional	Mini-Spherical	Mini-Spherical
Air Velocity	2 to 6000 fpm	2 to 6000 fpm	2 to 9840 fpm	2 to 6000 fpm	2 to 1000 fpm	2 to 1000 fpm	2 to 6000 fpm	2 to 6000 fpm
Temperature	-4 to 158°F	-4 to 158°F	-4 to 158°F	-4 to 158°F	-4 to 158°F	-4 to 158°F	n/a	n/a
Relative Humidity	2.0 to 98.0%RH	n/a	n/a	n/a	2.0 to 98.0%RH	n/a	n/a	n/a
