Digital Temperature Sensor - STS21

Output: I2C
Energy consumption: 8.6μW (at 11bit, 1 measurement / s)
T operating range: -40 to +125°C (-40 to +257°F)
T response time: 5 sec (tau63%)
Accuracy tolerance: ±0.2°C
Repeatability: ±0.1°C

  • Model Number: STS21
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Digital Temperature Sensor
Mouse over image to zoom
Share:

Product Specification

STS21 Digital Temperature Sensor Product Summary

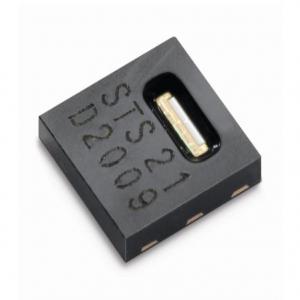

STS21, the new temperature sensor of Sensirion is about to set new standards in terms of size and intelligence: Embedded in a reflow solderable Dual Flat No leads (DFN) package of 3 x 3mm foot print and 1.1mm height it provides calibrated, linearized signals in digital, I2C format.

Using the same CMOSens? technology as Sensirion's successful and industry proven SHT2x humidity and temperature sensors, the STS21 offers superior performance and reliability. The ±0.2°C temperature specification allows for implementation of the STS21 in applications with high demands on temperature accuracy.

Every sensor is individually calibrated and tested. Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command. Furthermore, the resolution of STS21 can be changed by command (11bit up to 14bit), low battery can be detected and a checksum helps to improve communication reliability.

With made improvements and the miniaturization of the sensor the performance-to-price ratio has been improved – and eventually, any device should benefit from the cutting edge energy saving operation mode.

STS21 Digital Temperature Sensor FEATURES
? Fully calibrated
? Digital output, I2C interface
? Low power consumption
? Excellent long term stability
? DFN type package – reflow solderable

STS21 Digital Temperature Sensor PERFORMANCE
Temperature Specification

Parameter
Condition
min
typ
max
Units
Resolution
14 bit

0.01

°C
12 bit

0.04

°C
Accuracy tolerance
typ

±0.2

°C
max

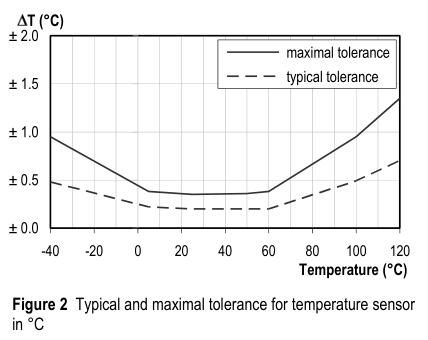

see Figure 2
°C
Repeatability


±0.1

°C
Operating Range
extended
-40

125 °C
Response Time
τ63%
5
30 s
Long Term Drift


< 0.04

°C/yr


Electrical Specification
Parameter
Conditions
min
typ
max
Units
Supply Voltage, VDD

2.1 3.0 3.6 V
Supply Current, IDD
sleep mode

0.15 0.4 μA
measuring
200 300 330 μA
Power Dissipation
sleep mode

0.5 1.2 μW
measuring
0.6 0.9 1.0 mW
average 11bit

8.6
μW
Communication
digital 2-wire interface, I2C protocol
