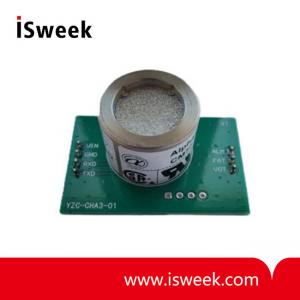

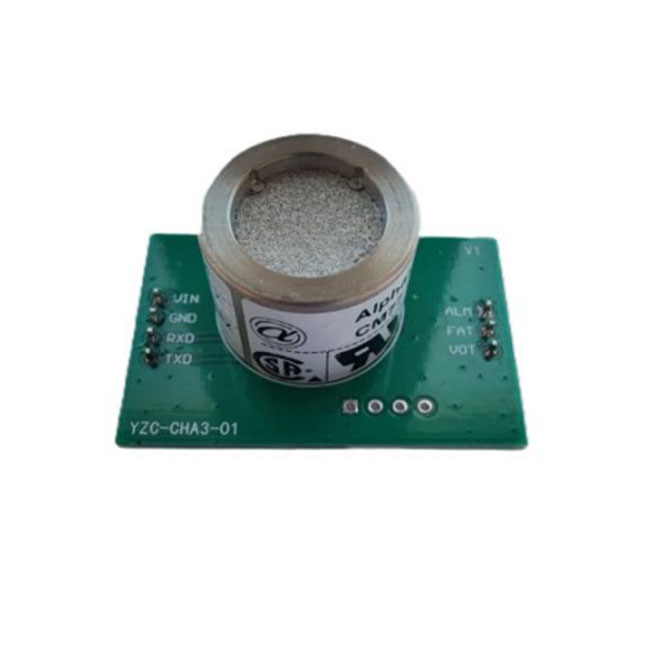

Equipped with CH-A3 Catalytic combustion methane sensor module （CH4） - AG-3-CHx-CHA3(D)

Good stability and resistance to toxicity
Digital communication mode
Gas detection in industrial field

Model Number: AG-3-CHx-CHA3(D)
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

Equipped with CH-A3 Catalytic combustion methane sensor module （CH4）??AG-3-CHx-CHA3(D)??Product Description：

The AG-3-CHx-CHA3(D)?is an embedded type module equipped with the Alphasense CH-A3 Catalytic Sensor, capable of detecting combustible gases such as methane (CH4), LP gas, and Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability, and anti poisoning. It utilizes digital communication through a UART bus output for gas concentration readings, which allows users to easily and quickly integrate the module into various systems. This makes it suitable for industrial gas detection applications

Equipped with CH-A3 Catalytic combustion methane sensor module （CH4）??AG-3-CHx-CHA3(D)??Application：

LNG and LPG alarms

detectors for LNG and LPG

Equipped with CH-A3 Catalytic combustion methane sensor module （CH4）?AG-3-CHx-CHA3(D)??Technical Specification：

Item	Specification
Model Number	AG-3-CHx-CHA3(D)
Target Gases	CH4, C3H8, H2etc
Sensing Principle	Catalytic
Detection Range	0-100% LEL
Resolution	1% LEL
Measurement Error	< ±5% FS
Operating Voltage	5-12V DC
Operating Current	≤100mA@5V
Output Signal	UART (+3.0V TTL)
Temperature Range	-40- 70°C
Humidity Range	0% -90%RH
Pressure Range	900.0 to 1120 mbar
Storage Temperature	10 - 40°C
Size	LWH=49mm34mm26mm
Expected Life	≥ 2years
