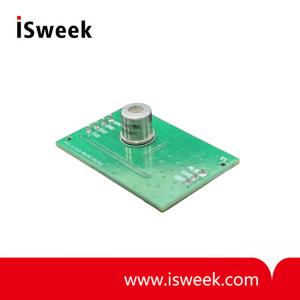

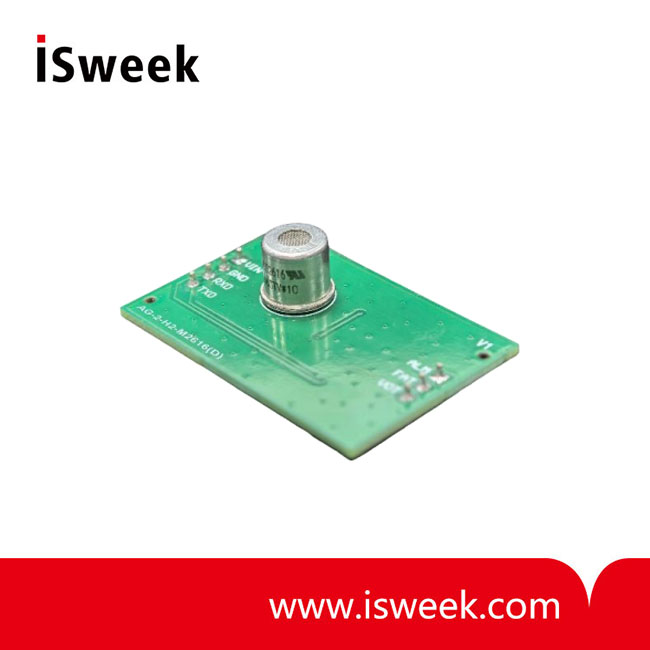

Equipped With Figaro's Embedded Module Semiconductor Sensor TGS2616-C00 H2 - AG-2-H2-MA2616(D)

High selectivity to hydrogen
CO-Interference-Free
UARTRS232 digital output
pre-calibrated before leaving the factory

Model Number: AG-2-H2-MA2616(D)
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

Product Description

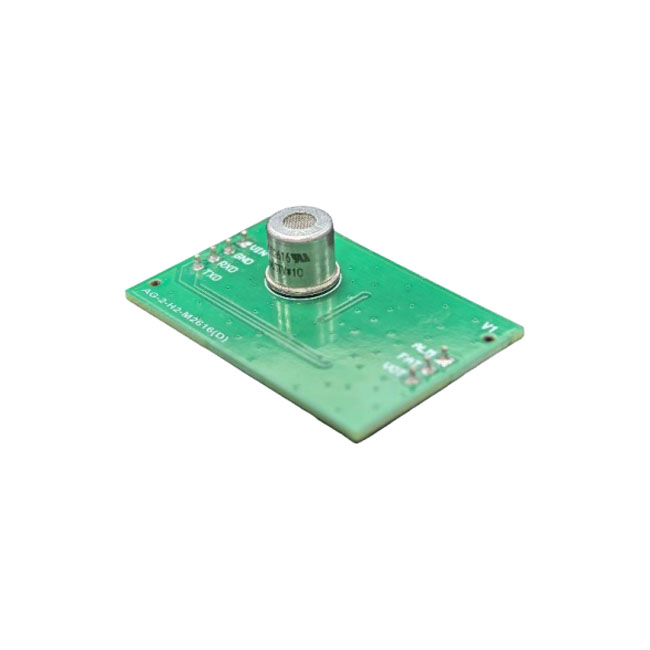

The AG-2-H2-MA2616(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2616-C00, capable of detecting Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability, and anti-poisoning. It utilizes digital communication allows users to easily and quickly integrate the module into various systems. This makes it suitable for Hydrogen leak detection applications.

Features

High selectivity to hydrogen

CO-Interference-Free

UARTRS232 digital output

pre-calibrated before leaving the factory

Technical Specification

Item	Specification
Model Number	AG-2-H2-M2616(D)
Target Gases	Hydrogen
Sensing Principle	Semiconductor
Detection Range	30 ~ 3,000 ppm
Measurement Error	<3% FS
Operating Voltage	5V±0.2V DC
Output Signal	UART PWM(2kHz)
Temperature Range	-20~ 50°C
Humidity Range	20% -95%RH
Pressure Range	1 ± 0.1 atm
Storage Temperature	-10~ 50°C
Expected Life	≥ 10years
Size	LWH=26mm27mm20mm (TGS2616-C00)

Technical Specification

Item	Specification
Power consumption	≤ 1.5 W
Response time(T90)	≤ 30 second
Warm up time	4 minutes
Resolution USART	1 ppm
Resolution PWM	VO = V × DUTY2
Electrical interface	2.0 mm pitch 2-row pin header
