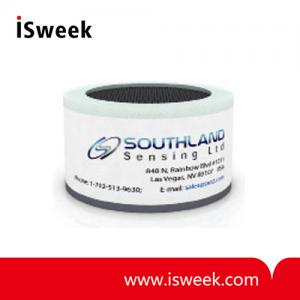

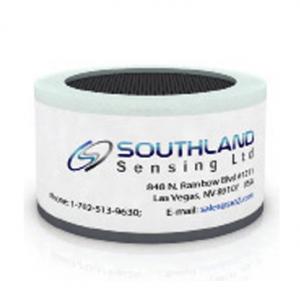

General Purpose Percent Oxygen Sensor - PO2-13

? Sensor Technology: Micro Fuel Cell
? Signal Output: 240 - 360 uA
? Measuring Range: 0 - 100 Percent
? Response Time T90: 13 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50oC
? Humidity: 0 - 100% RH (Non - Condensing)

Model Number: PO2-13
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PO2-13 Percent Oxygen Sensor
General Purpose % Oxygen, Competitive Replacement

PO2-13 Percent Oxygen Sensor Direct Replacement Guide
Analytical Industries: PSR-11-23
Teledyne: B-3

PO2-13 Percent Oxygen Sensor Specifications:

Sensor Technology	Micro Fuel Cell
Signal Output¹	240 - 360 uA
Measuring Range	0 - 100 Percent
Response Time T90	13 Seconds
Accuracy Full Scale²	± 1% of Signal
Repeatability F.S.	±0.5%
Temp Coefficient	2.54 % /°C
Operating Temp	0 to 50°C
Storage Temp	0 to 45°C
Recommended Flow	0.5 - 2 SCFH
Humidity	0 - 100% RH (Non - Condensing)
Expected Life³	15 Months
Storage	6 Months
Warranty⁴	9 Months
PCB Connection	Center Foil Negative Outer Foil Positive

1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 is 20.9% @ 25°C, sea level
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
