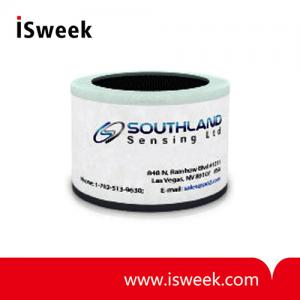

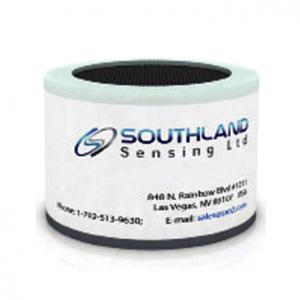

Trace PPM Oxygen Sensor (O2 sensor) - TO2-IT-A

? Sensor Technology: Micro Fuel Cell
? Signal Output: 285 - 590 uA
? Measuring Range: 0 - 10 PPM (Min); 0 - 10000 PPM (Max)
? Response Time T90: 13 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50°C
? Humidity: 0 - 100% RH (Non - Condensing)

  • Model Number: TO2-IT-A
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Trace PPM Oxygen Sensor (O2 sensor)
  • Trace PPM Oxygen Sensor (O2 sensor)
Mouse over image to zoom
Share:

Product Specification

TO2-IT-A PPM Oxygen Sensor (O2 sensor)

Trace O2 measurement when CO2 > 0.1%. Competitive Replacement


TO2-IT-A PPM Oxygen Sensor (O2 sensor) Direct Replacement Guide
Teledyne Analytical: Insta Trace, CO2 Applications


TO2-IT-A PPM Oxygen Sensor (O2 sensor) Specifications:

Sensor Technology

 Micro Fuel Cell

Signal Output1

 285 - 590 uA

Measuring Range

 0 - 10 PPM (Min)
 0 - 10000 PPM (Max)

Response Time T90

 13 Seconds

Accuracy Full Scale2

 ± 1% of Signal

Repeatability F.S.

 ±0.5%

Temp Coefficient

 2.54 % /°C

Operating Temp

 0 to 50°C

Storage Temp

 0 to 45°C

Recommended Flow

 0.5 - 2 SCFH

Humidity

 0 - 100% RH (Non - Condensing)

Expected Life3

 17 - 25 Months

Storage

 6 Months

Warranty4

 12 Months

PCB Connection

 Center Foil Negative Outer Foil Positive

For use in CO2 applications

1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic Temperature change can result in a maximum error of ± 10%
3. Expected life is calculated when O2 <1000 ppm @ 25°C, Sea Level.
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
