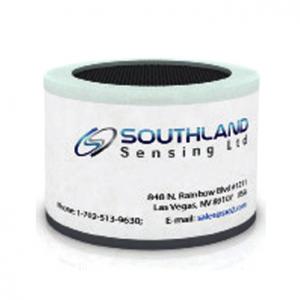

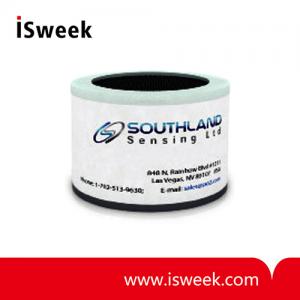

General Purpose Trace (PPM) Oxygen Sensor - TO2-1L

? Sensor Technology: Micro Fuel Cell
? Signal Output: 285 - 590 uA
? Measuring Range: 0 - 10 PPM (Min); 0 - 10000 PPM (Max)
? Response Time T90: 13 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50oC
? Humidity: 0 - 100% RH (Non - Condensing)

Model Number: TO2-1L
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TO2-1L PPM Oxygen Sensor
General Purpose Trace O2 measurement 0 - 10ppm. Competitive Replacement

TO2-1L PPM Oxygen Sensor Direct Replacement Guide
Teledyne Analytical L-2, L-2C

TO2-1L PPM Oxygen Sensor Specifications:

Sensor Technology	Micro Fuel Cell
Signal Output¹	285 - 590 uA
Measuring Range	0 - 10 PPM (Min) 0 - 10000 PPM (Max)
Response Time T90	13 Seconds
Accuracy Full Scale²	± 1% of Signal
Repeatability F.S.	±0.5%
Temp Coefficient	2.54 % /°C
Operating Temp	0 to 50°C
Storage Temp	0 to 45°C
Recommended Flow	0.5 - 5 SCFH
Humidity	0 - 100% RH (Non - Condensing)
Expected Life³	17 - 25 Months
Storage	6 Months
Warranty⁴	12 Months
PCB Connection	Center Foil Negative Outer Foil Positive

1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic Temperature change can result in a maximum error of ± 10%
3. Expected life is calculated when O2 < 1000 ppm @ 25°C, Sea Level.
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
