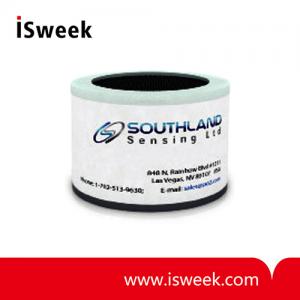

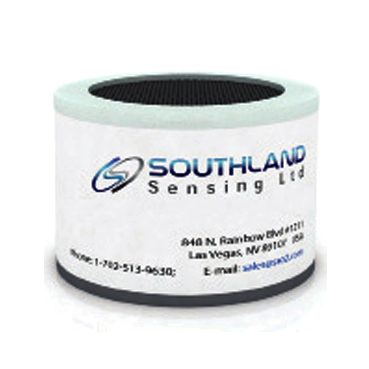

General Purpose Trace (PPM) Oxygen Sensor - TO2-IT

? Sensor Technology: Micro Fuel Cell
? Signal Output: 285 - 590 uA
? Measuring Range: 0 - 10 PPM(Min); 0 - 10000 PPM(Max)
? Response Time T90: 13 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50°C
? Humidity: 0 - 100% RH (Non - Condensing)

Model Number: TO2-IT
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TO2-IT PPM Oxygen Sensor

General Purpose Trace O2 measurement 0 - 10ppm. Competitive Replacement

TO2-IT PPM Oxygen Sensor Direct Replacement Guide
Teledyne Analytical: Insta Trace

TO2-IT?PPM Oxygen Sensor?Specifications:

Sensor Technology	?Micro Fuel Cell
Signal Output¹	?285 - 590 uA
Measuring Range	?0 - 10 PPM (Min) ?0 - 10000 PPM (Max)
Response Time T90	?13 Seconds
Accuracy Full Scale²	?± 1% of Signal
Repeatability F.S.	?±0.5%
Temp Coefficient	?2.54 % /°C
Operating Temp	?0 to 50°C
Storage Temp	?0 to 45°C
Recommended Flow	?0.5 - 5 SCFH
Humidity	?0 - 100% RH?(Non - Condensing)
Expected Life³	?17 - 25 Months
Storage	?6 Months
Warranty⁴	?12 Months
PCB Connection	?Center Foil Negative?Outer Foil Positive

1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic Temperature change can result in a maximum error of ± 10%
3. Expected life is calculated when?O2 <1000 ppm @ 25°C, Sea Level.
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
