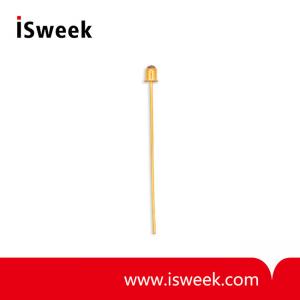

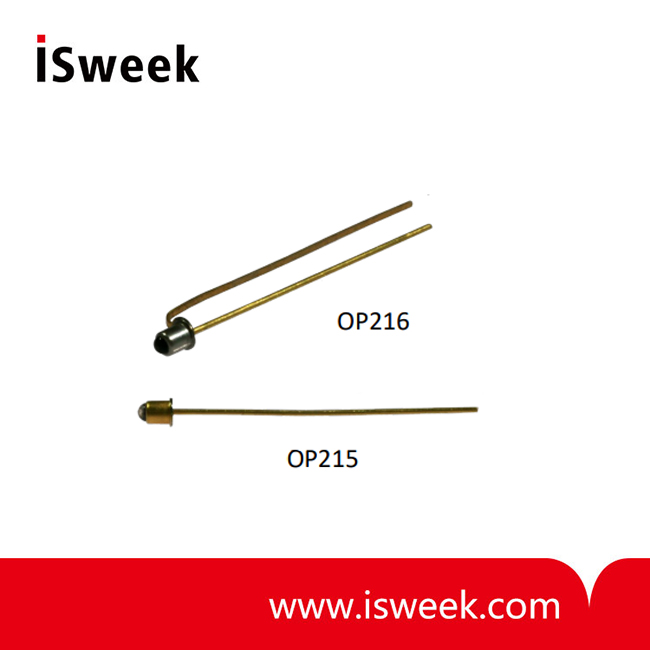

Hermetic Infrared Emitting Diode - OP215、OP216

Hermetically sealed package
Mechanically and spectrally matched to other OPTEK devices
Designed for direct mount to PCBoard
Enhanced temperature range
Excellent coupling efficiency

  • Model Number: OP215、OP216
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Hermetic Infrared Emitting Diode
  • Hermetic Infrared Emitting Diode
Mouse over image to zoom
Share:

Product Specification

Description:

    Each OP215 and OP216 device is an 890 nm gallium aluminum arsenide infrared emitting diode (GaAlAs), mounted in a hermetically sealed "pig talepackage with an enhanced temperature range and a narrow irradiance pattern that provides high on-axis intensity for excellent coupling efficiency.These devices offer significantly higher power output than GaAs at equivalent drive currents and have a wavelength that is matched to silicons peak response. Their small package size permits high device density mounting.

    The OP216A device provide an additional mounting tab connected to the Cathode/Case.

    these LEDs are mechanically and spectrally matched to the OP300 series, 0P516,OP600 series and OP640 series devices.


Features:


  • Hermetically sealed package
  • Mechanically and spectrally matched to other OPTEK devices
  • Designed for direct mount to PCBoard
  • Enhanced temperature range
  • Excellent coupling efficiency



Applications:


  • Non-contact reflective object sensor.
  • Assembly line automation
  • Machine automation
  • Machine safety
  • End of travel sensor
  • Door sensor

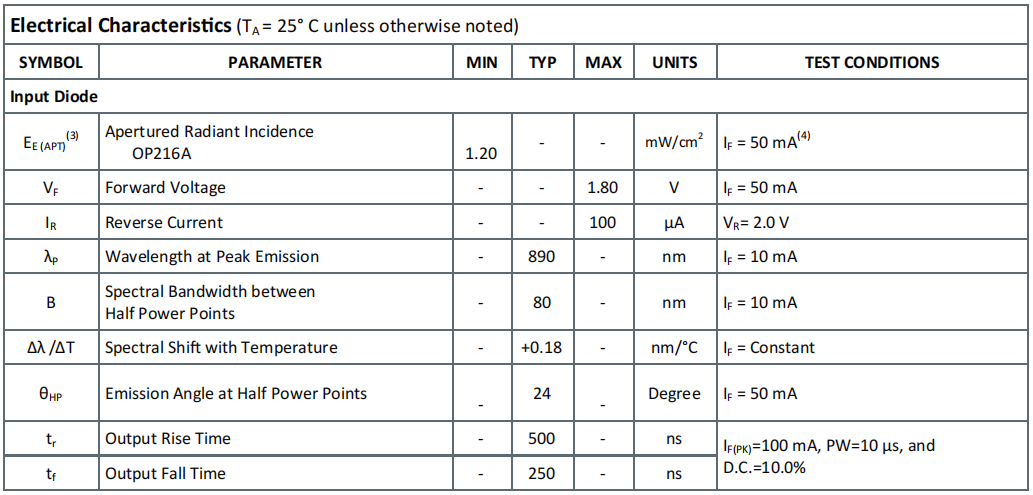

Electrical Specifications:
