NPN Silicon Phototransistor - OP600 Series

Product Specification

Description:

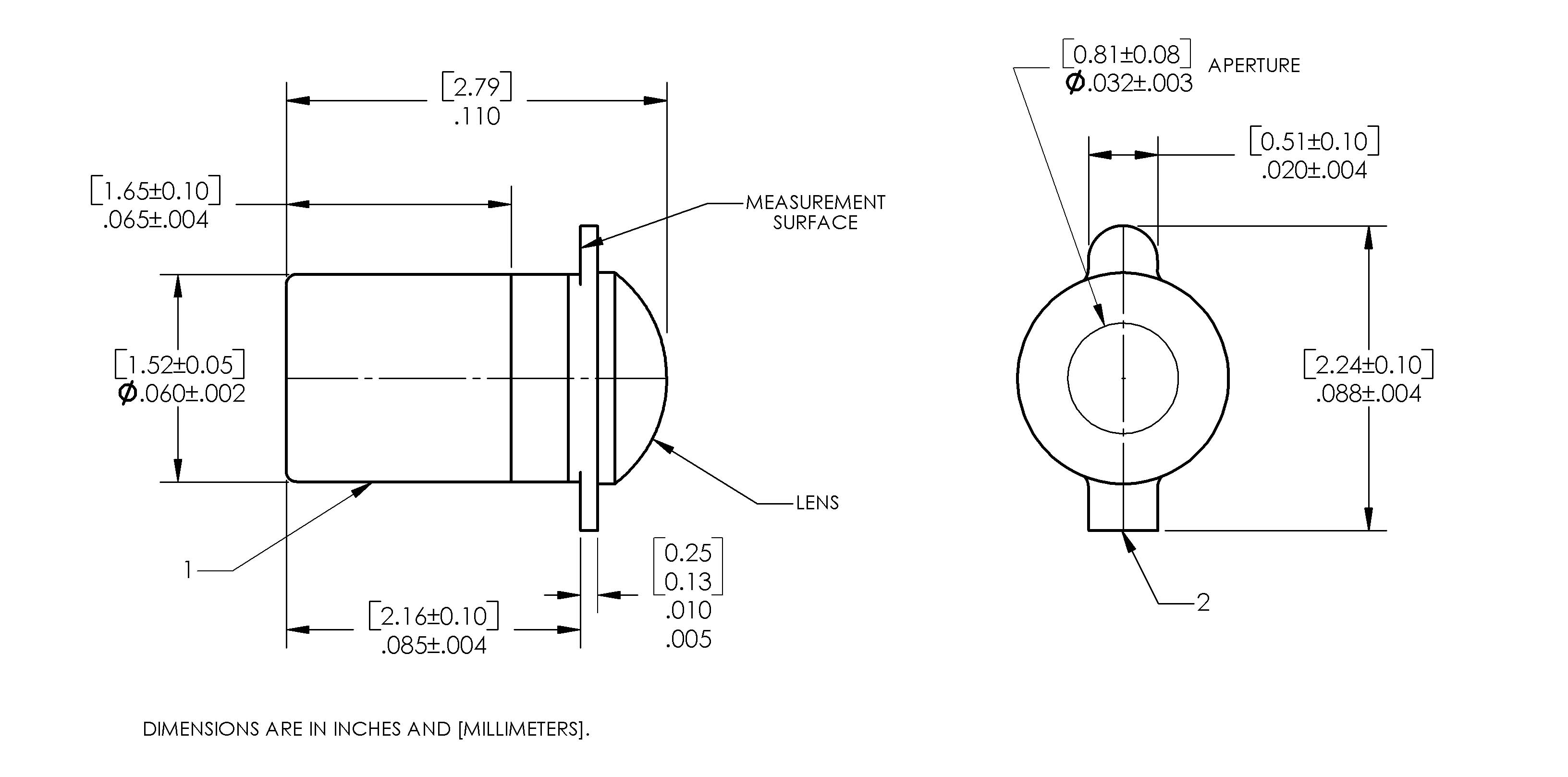

Each device in this series is a NPN silicon phototransistor in a hermetically sealed pill package. The narrow receiving angle provides excellent on-axis coupling.

The OP600 series devices are 100% production tested using infrared light for close correlation with OPTEK GaAs and GaAIAs emitters. Components in the OP600 series are mechanically and spectrally matched to the OP123 and OP233 series.

TXV and S components are available. For more information, please contact your local representative or OPTEK.

Please refer to Application Bulletins 208 and 210 for additional information and reliability (degradation) data, and to Application Bulletin 202 for pill-type soldering to PC Board.

Features:

? Narrow receiving angle

? Variety of sensitivity ranges

? Enhanced temperature range

? PC Board Mounting

? Mechanically and spectrally matched to OP123 and OP223 LEDs

? TXV and S processing available (see Hi-Rel section)

Applications:

? Non-contact reflective object sensor

? Assembly line automation

? Machine automation

? Machine safety

? End of travel sensor

? Door sensor

Electrical Specifications:

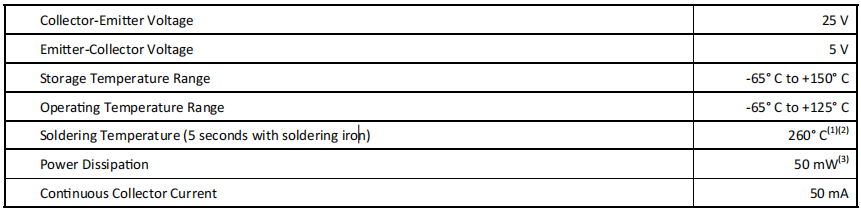

Absolute Maximum Ratings (T_A = 25℃ unless otherwise noted)

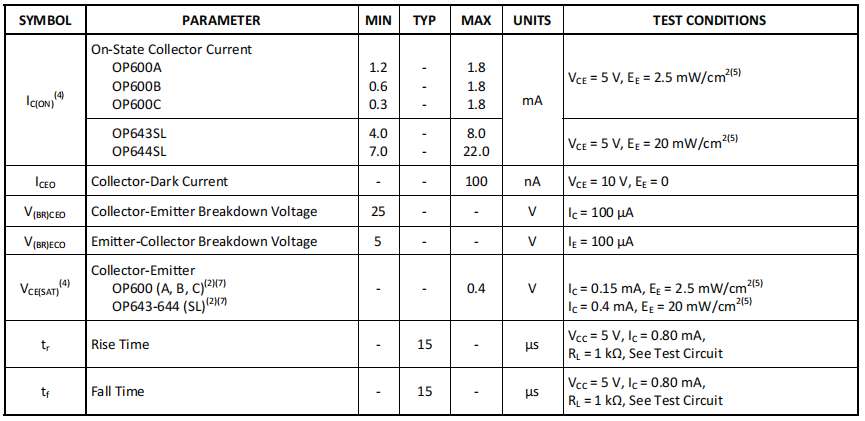

Electrical Characteristics (T_A = 25℃ unless otherwise noted)

Notes:

(1) Refer to Application Bulleting 202, which discusses proper techniques for soldering pill-type devices to PCBoards.

(2) No clean or low solids. RMA flux is recommended. Duration can be extended to 10 seconds maximum when flow soldering.

(3) Derate linearly 0.5 mW/° C above 25° C.

(4) Junction temperature maintained at 25° C.

(5) For OP600A, OP600B and OP600C, light source is a GaAIAs LED, peak wavelength = 890 nm, that provides irradiance of 2.5 mW/cm2

. The source irradiance is not necessarily uniform over the entire lens area of the unit being tested.

(6) For OP643SL and OP644SL, light source is an unfiltered tungsten bulb operating at CT = 2870 K or equivalent infrared source.
