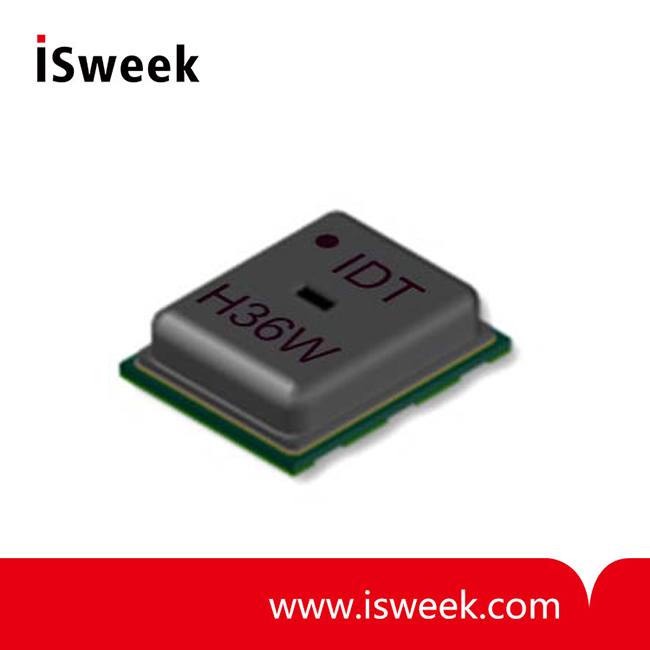

High-Performance Relative Humidity and Temperature Sensor - HS3003
? Climate control systems
? Home appliances §
? Weather stations
? Industrial automation
? Medical equipment
? Automotive cabin climate control
- Model Number: HS3003
- Data Sheet:
- Quantity:
- - +
Product Specification
Description：
The HS3003 is a highly-accurate, fully-calibrated relative humidity and temperature sensor. The high accuracy, fast measurement response time, and long-term stability, along with the small package size, makes the HS3003 ideal for a wide number of applications from portable to harsh environments.
An integrated calibration and temperature compensation logic provides fully corrected RH and T values via a standard I2C output. The measured data is internally corrected and compensated for accurate operation over a wide range of temperature and humidity levels–user calibration is not required.
Features：
? RH accuracy: ±2.8% RH typical
? Fast RH response time (typical 6 seconds)
? Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)
? 14-bit resolution: 0.01% RH (typical)
? Low power consumption: 1.0μA average (one RH+T measurement per second, 8-bit resolution,
1.8V supply)
? Extended supply voltage: 2.3V to 5.5V
Typical Applications：
? Climate control systems
? Home appliances
? Weather stations
? Industrial automation
? Medical equipment
? Automotive cabin climate control
