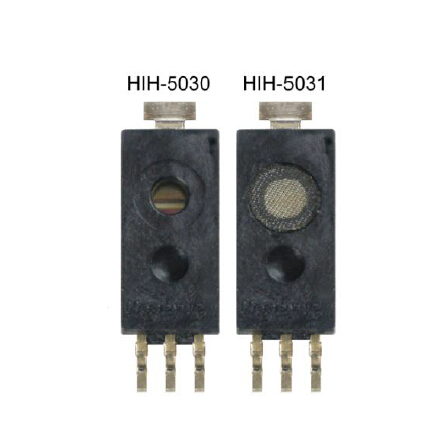

HIH-5030/5031 Series Low Voltage Humidity Sensors - HIH-5030 , HIH-5031

Molded thermoset plastic housing
Near linear voltage output vs %RH
Laser trimmed interchangeability
Low power design
Enhanced accuracy
Fast response time
Stable, low drift performance
Chemically resistant

  • Model Number: HIH-5030 , HIH-5031
  • Data Sheet: Date Sheet File
Quantity:
- +
  • HIH-5030/5031 Series Low Voltage Humidity Sensors
Mouse over image to zoom
Share:

Product Specification

HIH-5030/5031 Series Low Voltage Humidity Sensors DESCRIPTION

The HIH-5030/5031 Series Low Voltage Humidity Sensors operate down to 2.7 Vdc, often ideal in battery-powered systems where the supply is a nominal 3 Vdc.



The HIH 5030/5031 complements our existing line of 5 Vdc SMD (Surface Mount Device) humidity sensors. SMD packaging on tape and reel allows for use in high volume, automated pick and place manufacturing, eliminating lead misalignment to printed circuit board through-holes.


The HIH-5030/5031 Series Humidity Sensors are designed specifically for high volume OEM (Original Equipment Manufacturer) users.


Direct input to a controller or other device is made possible by this sensors near linear voltage output. With a typical current draw of only 200 A, the HIH-5030/5031 Series is ideally suited for many low drain, battery operated systems.


Tight sensor interchangeability reduces or eliminates OEM production calibration costs.


The HIH-5030/5031 Series delivers instrumentation-quality RH (Relative Humidity) sensing performance in a competitively priced, solderable SMD.


The HIH-5030 is a covered integrated circuit humidity sensor. The HIH-5031 is a covered, condensation-resistant, integrated circuit humidity sensor that is factory-fitted with a hydrophobic filter allowing it to be used in many condensing environments including industrial, medical and commercial applications.

The RH sensor uses a laser trimmed, thermoset polymer capacitive sensing element with on-chip integrated signal conditioning.

The sensing element's multilayer construction provides excellent resistance to most application hazards such as condensation, dust, dirt, oils and common environmental chemicals.

Sample packs are available. See order guide.


HIH-5030/5031 Series Low Voltage Humidity Sensors FEATURES

Operates down to 2.7 Vdc, often ideal in battery-powered systems where the supply is a nominal 3 Vdc.

Tape and reel packaging allows for use in high volume pick and place manufacturing (1,000 units per tape and reel)

Molded thermoset plastic housing

Near linear voltage output vs %RH

Laser trimmed interchangeability

Low power design

Enhanced accuracy

Fast response time

Stable, low drift performance

Chemically resistant


HIH-5030/5031 Series Low Voltage Humidity Sensors POTENTIAL APPLICATIONS

● Industrial

   Air compressors

   Battery-powered systems

   Drying equipment

   HVAC (includes air conditioning, air movement, thermostats, humidifiers, de-humidifiers, humidistats, enthalpy sensing)

   OEM assemblies

   Office automation equipment

   Process equipment

   Refrigeration (includes bulk and transport systems)

   Telecommunications cabinets

   Weather stations and meteorology equipment

HIH-5030/5031 Series Low Voltage Humidity Sensors Medical

   Hospital air compressors

   Infant incubators

   Microenvironments

   Sleep apnea equipment

   Treadmill stress monitoring equipment


Performance Specifications (At 3.3 Vdc supply and 25 'C [77 'F] unless otherwise noted.)
