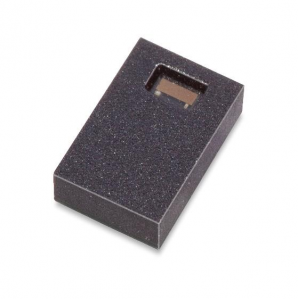

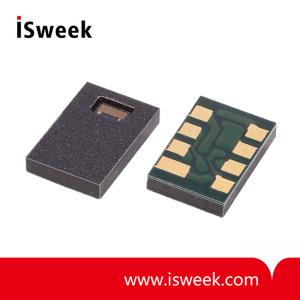

Humi ChipⅡ (SMD Type) - HCP2D-3V

Product Specification

Product Summary：

    HCP2D-3V is an improved version of HumiChip?, the most advanced and cost effective humidity and temperature sensing solution for virtually anytype of applications.

    Capacitive polymer sensor chip developed and fabricated in-house and CMOS integrated circuit with EEPROM are integrated into one embedded system in a reflow solder-able SMD package.

Individually calibrated and tested, HCP2D-3V performs ±2% from 20% to 80%RH (±4% over entire humidity range), and yet, is simple and ready to use without further calibration or temperature compensation.

    HCP2D-3V provides linear output signals in various interfaces to customer requirements - the standard I²C interface and an Alarm function for preset control at min/max humidity.

    Designed and manufactured by industry leading humidity and temperature sensing technology of SAMYOUNG S&C – field proven in HVAC and Auto industry for over 15 years, HCP2D-3V offers another smart sensing solution for excellent reliability, high accuracy, and cost effective sensing applications.

Enhanced Features：

? Improved Temperature Accuracy & Range (±0.2℃ for -20 ~ 60℃) s

? Extremely Low Current Consumption (13? operating) s

? I²C with Alarm Function

? Enhanced Accuracy of RH% (±2%RH, 14bit )

? Pin-to-Pin match with existing HumiChip? s

? Fast Natural Recovery after Reflow Soldering

? Enhanced Reliability against Chemical

Application：

? Energy Saving HVAC Control

Air Conditioning, Refrigeration, IAQ monitoring,Vent Fans, Home Appliances, Humi/Dehumidifiers

? Process Control & Instrumentations

Medical Instruments, Handheld Devices, Weather Stations, Food Processing, Printers, RFIDs …

? Automobile & Transportation

Cabin Climate Control, Defogging Control

Condensing Preventive Device …,

? Mass Quantity Application

OEM custom specification available

Sensor Performance：

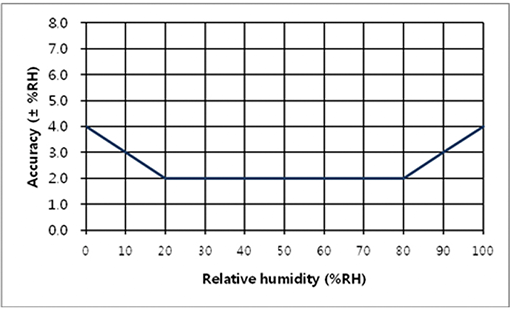

Relative Humidity (%RH)

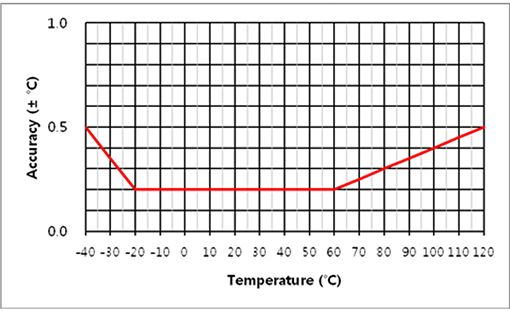

Temperature (℃)
