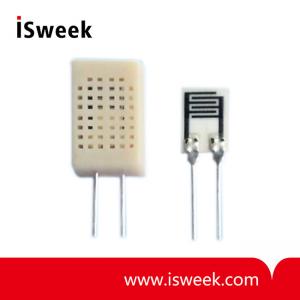

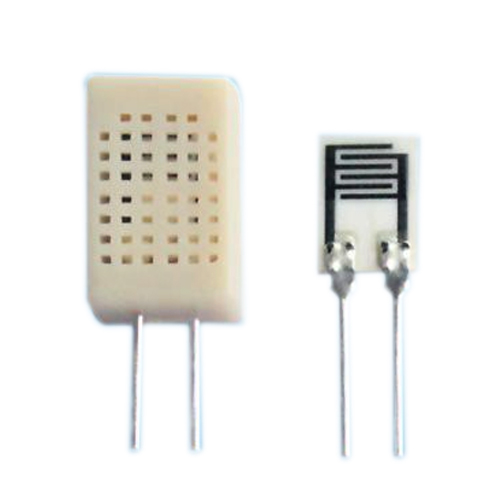

Humidity Sensitive Resistor - HR202L

? Fixed Voltage: 1.5V AC (Max, Sine wave)
? Fixed power: 0.2mW (Max, Sine wave)
? Operating Frequency: 500Hz ~ 2kHz
? Temperature: 0 ~ 60°C
? Humidity: <95%RH (Non-condensing)
? Wet hysteresis difference: ≤2%RH
? Response time: Hygroscopic, ≤20S; De Wet ≤40S

  • Model Number: HR202L
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Humidity Sensitive Resistor
  • Humidity Sensitive Resistor
Mouse over image to zoom
Share:

Product Specification

HR202L Humidity Sensitive Resistor Product Overview
HR202L humidity resistance is the use of a new type of organic polymer materials moisture sensitive components, with a sense of wide humidity range, fast response, strong anti-pollution, no heat cleaning and long-term stable and reliable performance, and many other features.

HR202L Humidity Sensitive Resistor Applications
Display for temperature and humidity meter, temperature and humidity gift table, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications.

HR202L Humidity Sensitive Resistor Product Highlights
Compact and handsome appearance, good long-term stability, wide temperature and humidity measuring range, high and low temperature and humidity measurement accuracy.

HR202L Humidity Sensitive Resistor Parameters

Fixed Voltage
 1.5V AC (Max, Sine wave)
Fixed power
 0.2mW (Max, Sine wave)
Operating Frequency
 500Hz ~ 2kHz
Temperature
 0 ~ 60°C
Humidity
 <95%RH (Non-condensing)
Wet hysteresis difference
 ≤2%RH
Response time
 Hygroscopic, ≤20S; De Wet ≤40S
Stability
 ≤1%RH/year
Humidity detection accuracy
 ≤±5%RH


Relative humidity
Conditions
 at 25°C 1kHz 1V AC (Sine wave)
Humidity
 60%RH
Central value
 31 KΩ
Impedance values range
 19.8 ~ 50.2 KΩ
Humidity detection accuracy
 ±5%RH
