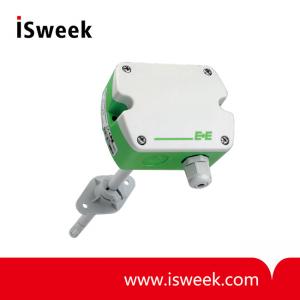

HVAC Humidity and Temperature Sensor - EE160

? Wall and duct mount versions
? Voltage and current outputs freely configurable and scaleable
? Certified BACnet MS/TP or Modbus RTU, user configurable
? Optional passive temperature output

Model Number: EE160
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Humidity and Temperature Sensor for Building Management

Specially designed for HVAC, the EE160 by E+E Elektronik is a cost-effective, highly accurate transmitter for relative humidity and temperature.

With encapsulated measurement electronics inside the sensing probe and E+E proprietary coating protection of the humidity sensor element, EE160 offer outstanding long term stability and reliability.

Typical Applications:

? Heating, ventilation and air conditioning

? Storage rooms

Key Features EE160:

? Wall and duct mount versions

? Voltage and current outputs freely configurable and scaleable

? Certified BACnet MS/TP or Modbus RTU, user configurable

? Optional passive temperature output

? Temperature compensation

? Protection against condensation and pollution

? Robust sensing head

? Easy mounting

? RH and T adjustable by the user

? Free configuration software

Technical data EE160:

MEASURING RANGE	10...95% RH -40...60 °C (-40...140 °F)
ACCURACY	±2.5% RH ±0.3 °C (±0.54 °F)
ANALOGUE OUTPUTS	0-10V or 4-20mA
DIGITAL OUTPUT	BACnet MS/TP or Modbus RTU
PASSIVE T-OUPTUT	optional
SUPPLY	24V AC/DC
