HygroFlex3-series HVAC Transmitter for Humidity and Temperature - HF3

? Relative humidity, temperature measurement and dew point calculation
? Outstanding accuracy and repeatability
? Hygromer? IN-1 humidity sensor
? Auto-diagnostics and automatic correction
? Freely selectable and scalable analog outputs
? Also available as hygrostat and thermostat

  • Model Number: HF3
  • Data Sheet: Date Sheet File
Quantity:
- +

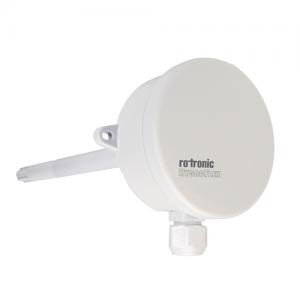

  • HygroFlex3-series HVAC Transmitter for Humidity and Temperature

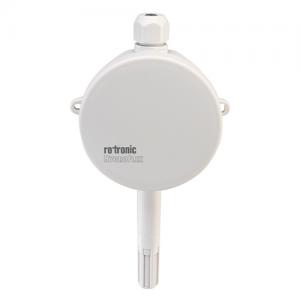

  • HygroFlex3-series HVAC Transmitter for Humidity and Temperature

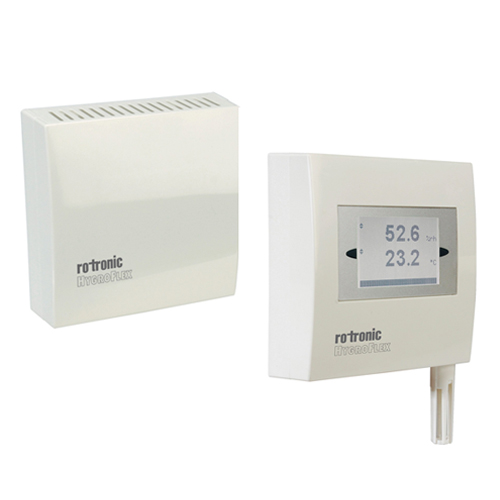

  • HygroFlex3-series HVAC Transmitter for Humidity and Temperature
Mouse over image to zoom
Share:

Product Specification

HYGROFLEX3-SERIES

THE ADVANCED HVAC TRANSMITTER.


INNOVATION IN HUMIDITY AND TEMPERATURE MEASUREMENT

? Relative humidity, temperature measurement and dew point calculation

? Outstanding accuracy and repeatability

? Hygromer? IN-1 humidity sensor

? Auto-diagnostics and automatic correction

? Freely selectable and scalable analog outputs

? Also available as hygrostat and thermostat


SPEcIFY THE BEST:
HYGROFLEX3 ADvANTAGES AT A GLANcE.

The new HygroFlex3-series is the latest development in HVAC transmitters for relative humidity, temperature and dew point. Based on AirChip3000 technology, the instruments achieve a degree of accuracy not seen before.

In combination with advances in sensor technology and integration, the HygroFlex3-series provides superb precision and state-of-the-art functionality, taking humidity, temperature and dew point measurement to a whole new level of performance and reliability (< 2 %rh / 0.3 K).


Highly versatile

? One or two selectable and scalable analog outputs

? Analog outputs assignable to relative humidity, temperature or dew point

? 2-wire or 3/4-wire systems available


AirChip3000

? Compensates humidity and temperature over 30,000 reference points

? 2,000 data point memory

? Dew/frost point calculation

? Sensor auto-diagnostics and automatic correction

? Active alarming and information

? ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip


Fast response and precision measurement

? By decoupling the Pt100 temperature sensor from the probe, thermal response is significantly improved

? Use of Pt100 1/3 Class B sensors for maximum accuracy


APPLICATIONS.

The HygroFlex3-series is ideal for all applications where exact measurement of humidity and temperature is of decisive importance. The transmitters can be used in a variety of fields for heating, ventilation and air conditioning applications, greenhouses, museums, warehouses, libraries, railway stations and for climate control in office buildings.

Thanks to the exceptional long-term stability of the sensors and auto-diagnostics, the transmitters are both service-friendly and reliable and will save you time and money.


OUTPUTS OF THE HYGROFLEX3-SERIES.
The high flexibility of the HygroFlex3-series allows the user to freely select the output parameters and the scale of each output. All you need to do is enter the desired settings using HW4 software.


TEcHNIcAL INFORMATION.

Sensor Diagnostics.
The intelligence of AirChip3000 technology enables advanced sensor diagnostics. Should the sensors deviate from factory defined parameters, measurement values can be compensated automatically.


Data Logging and Alarm Generation.
Up to 2,000 measurement values can be stored in the HygroFlex3 transmitter; the user is able to configure the measurement interval, set alarm limits, scale the output signal and download data using optional ROTRONIC HW4 software. The output signals of the HF3 can be programmed to take a fixed value in the event of a major sensor failure.


HF32: 2-wires

HF33: 3/4-wires

Integrated sensors

Yes

Humidity sensor

ROTRONIC Hygromer ? IN-1

Temperature sensor

Pt100 Class A

Accuracy at 23

±5 °C  ±2.0 %rh / 0.3 K (±1.0 %rh / 0.1 K Type R)

Resolution AirChip3000

<0.02 %rh / 0.01 K

Long-term stability humidity sensor

<1 %rh / year

Response timeτ?63

<10 s

Measurement range

-4060 °C / 0100 %rh

Electronics operating range

-4060 °C / 0100 %rh (-1060 °C with LCD)

Display (Space version only)

(HF32S: no backlight)

Graphic LCD

Parameters freely configurable

Alarm functions (programmable)

Open or shorted sensor

Output signals

Freely scalable by user

0...1 V, 0...5 V, 0...10 V, 0(4)...20 mA

Change in signal type

HF33 only

Power supply

HF32: 10...28 VDC: 10 V + (0.02 x load)

HF33: 1840 VDC/1328 VAC

Power consumption

HF32: max 40 mA, other models <150 mA

Circuit type

HF32: 2 x 2 wires, HF33: 3/4 wires

Min. / Max. Load

V-signal:1 kΩ/V / mA signal: 500 Ω

Firmware update

Via service connector requires HW4 software

Sensor diagnostics (Drift, state)

Programmable. Default: off

Sensor protection

Polyethylene filter

Max. air velocity

20 m/s at probe

Adjustments

Via ROTRONIC accessories

Humidity: multi point; 2 points

Data logging

Internal, 2000 data point memory

Dew point /Frost point calculation

Yes

PC interface (service connector)

With ROTRONIC interface cable HW4 compatible

Housing material / weight

ABS / approx. 120g

Cable connections

1 x M16x1.5 on terminals

Standards

CE-compliant

Audit trail Electronic Records

FDA CFR21 Part 11 and GAMP compliant

IP protection rating & fire protection class

IP65 / Corresponds to UL94-HB
