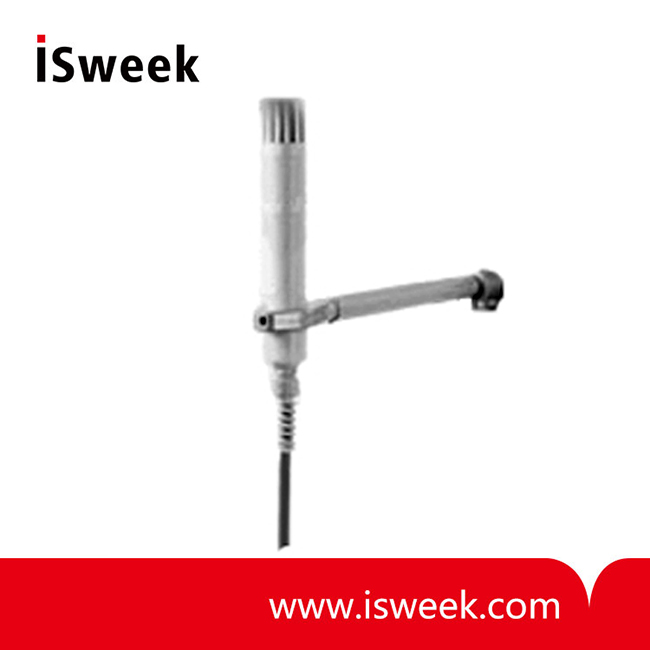

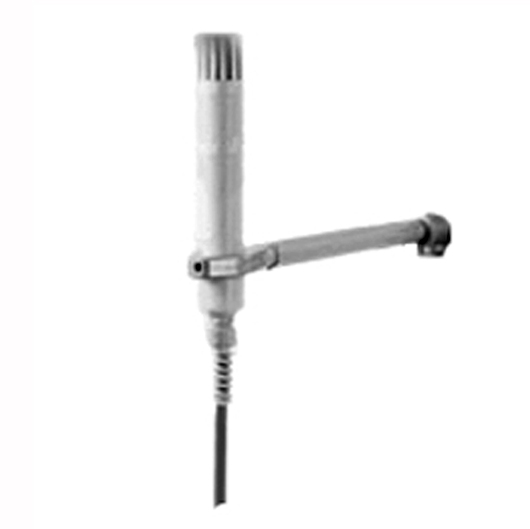

Indoor Thermoigrometric Sensor - UTAI
? Temperature typical range: -40 ~ +80°C
? Temperature resolution: 0.015°C
? Humidity typical range?: 0 ~ 100%Rh?
? Humidity resolution?: 0.1%?
? Working conditions?: -40 ~ +80°C?
? Power supply?: 10 - 28Vdc?
? Current consumption?: < 0.5W (UTAI-B)?
? Weight?: <100g?
- Quantity:
- - +
Product Specification
UTAI?Indoor Thermoigrometric Sensor?DESCRIPTION
Sensor made of plastic material for the measurement of indoor temperature and humidity. Its small size allows use in hidden conditions.
Temperature: RTD sensing element 1/3DIN Pt100, connection with a four-wire.
Relative Humidity: Sensor for air relative humidity measurement made of a thin film that changes the capacity in linear mode with the air humidity.
Electrical signal output in current or voltage (4 to 20mA or 0 - 1Vdc) or RS485/ModBus for applications
UTAI?Indoor Thermoigrometric Sensor?Highlihted specs
? Accurated and reliable Air Humidity & Temperature Sensor
? Very limited dimensions and weight
? Measure with high precision capacity and RTD Pt100
? According to CE norms
UTAI?Indoor Thermoigrometric Sensor?Technical Data
Temperature |
|
?Temperature typical range |
-40 ~ +80°C |
?Temperature resolution |
0.015°C |
?Temperature accuracy |
DIN 43760 1/3DIN (±0.1°C @ 0°C) |
?Temperature response time |
< 60 s |
?Type of transducer |
1/3DIN ?platinum resistance ?Pt100?(100? @ 0°C) |
Humidity |
|
?Humidity typical range |
0 ~ 100%Rh |
?Humidity resolution |
0.1% |
?Humidity accuracy |
± 2% f.s. |
?Humidity response time |
< 100sec (10÷80%RH) |
?Humidity measure type of transducer |
capacitive |
Signal out |
N: 0 - 1 Vdc(Rh) & Pt100 (T); A: 0 - 1 Vdc(Rh +T); B: 4 - 20mA (Rh+T) ; C: RS485 /ModBus |
Working conditions |
-40 ~ +80°C |
Power supply |
10 - 28Vdc |
Current consumption |
< 0.5W (UTAI-B) |
Weight |
<100g |
UTAI?Indoor Thermoigrometric Sensor?Order Form
Sensor |
Indoor Temperature and Relative Humidity Sensor |
UTAI |
A B C N |
05 10 xx |
SSM |
|
Output |
Temperature 0 - 1Vdc? 4 - 20mA RS485 / Modbus natural : Pt100 |
Humidity 0 - 1Vdc 4 - 20mA RS485 / Modbus 0 - 1Vdc |
|
|||
Accessories |
CS05 – Cable 5m sensor-datalogger CS10 – Cable 10m sensor-datalogger CSxx – Cable xx* m length sensor – datalogger? |
|||||
Arm support for stylus sensors for wall mounting |
example of order code
UTAI |
A | 10 | SSM |
* specify the length for no standard measures
